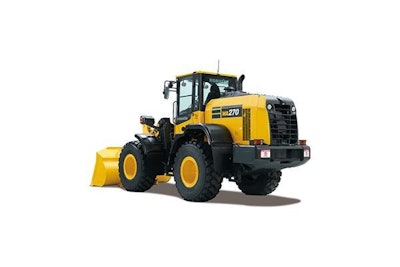

Mid-size wheel loader
WA270-8
KEY SPECS
Horsepower 149 HP @ 2,000 rpm
Operating Weight 28,208 - 29,079 lbs.
Bucket capacity 2.5 - 3.5 yd³
Overview
A versatile machine for your fleet
Whether you need to lift, move pipe, dig or change attachments on the fly, you will want a loader compact enough to squeeze between small spaces, yet powerful and responsive enough to tackle jobs planned for bigger machines.Easy operation with traction control modesLong-lasting brake life with simple one-pedal operationImpressive break-out forceVersatility for changing job site needs
Features and benefits
Enhanced control with HST
Help minimize wheel slippage and promote extended tire life with a smooth variable speed traction control system that helps keep your operator in control in virtually all working conditions. Auto-mode automatically adjusts without operator input, helping to keep loads stable.
Versatile PZ linkage plus high breakout force
Powerful breakout force and stability. Parallel-lift linkage with large break-out force and auto tilt-in feature simulates a Z-bar, which promotes material retention, helping operators save time and finish jobs faster.
Powerful performance, low fuel consumption
Save fuel while remaining productive. Komatsu's powerful engine and SmartLoader logic automatically creates enough torque for each work phase, reducing fuel consumption with no decrease in production.
Designed for easy maintenance
Swing out, hydraulically driven cooling fan that runs as needed, with new wider fin spacing and programable auto-reversing function makes cleaning easier. Gull-wing engine doors provide quick, convenient access for daily checks and service items.
Single-pedal operation
HST dynamic braking allows single-pedal operation which helps reduce periodic service, helps increases brake life, and promotes enhanced productivity, particularly among novice operators.
Optional high lift booms
Extend machine reach and application versatility with optional high lift booms, third spool hydraulics and quick coupler options, allowing owners to tackle bigger and more diverse projects.
