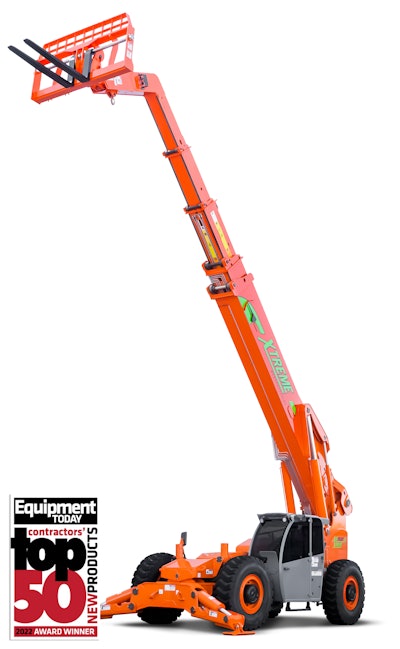

The 65,500-lb. XR1585-C utilizes a five-section boom design that enables it to deliver a maximum lift height of 85 ft. and a 67-ft. maximum forward reach.
- Capable of lifting loads up to 15,000 lbs.
- Available with a choice of fixed, fork positioning, swing or side tilt C-class carriages
- 173-hp Cummins 4.5L Tier 4 Final diesel engine and 100-gal. fuel tank
- Measures 102 in. wide, has a stowed height of 10 ft. 1 in. and has a turning radius of 16 ft. 8 in.
- Standard wide stance outriggers ensure maximum stability
- 49-gpm hydraulic flow and a hydraulic pressure of 4,000 psi enable use with a range of C-class attachments
- 12,000-lb.-capacity version (XR1285-B) available for use with B-class attachments
- Other features include 360° visibility from the cab, a fully-rated boom lift point, long-life boom rollers for smooth operation and a choice of open cab, enclosed cab and enclosed cab with heat and AC
- Various tires, fork tines and options, including telematics, available
XR1585-C
15,000 lbs Capacity
85 ft Max Lift Height
67 ft Forward Reach
173 hp (Tier 4F)
360° operator visibility
Ductile steel manifold
Suspension seat
Easy cab mounted grab handles
Easy service access
Master disconnect switch
Protected tilt & extend cylinders
Boom lift point
Steel hydraulic & fuel tanks
Manual lowering valve (cylinders)
Long life Lexan labels
Large cross section boom
Heavy duty boom chains
Easy tie downs
Suspended pedals
“Y” frame handle
Large capacity fuel tank
Heavy duty pre-cleaner
Trunnion mounted sway cylinders
Additional high pressure hydraulic filter
Melonite pins
Steel hood
Standard auxiliary hydraulics
Solid steel plate chassis
Steel dash
Rear axle stabilization (RAS)
Center mounted powertrain
Wider outrigger stance
Long life boom rollers
Back up alarm with light
Dual batteries
Cab step
Electrical aux hydraulic control
