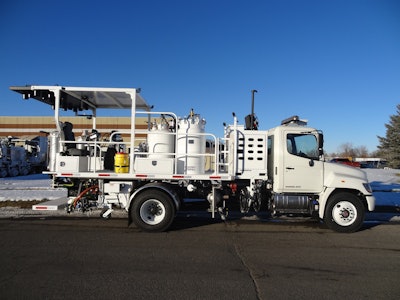

Mark Rite Lines Equipment Company introduced the brand new 1-120AA Paint Truck at NPE2015. This new highway paint truck sits on a 2014 HINO 338, 26,000 GVW, 187” Wheel Base with a 260 hp 6 cylinder turbo diesel engine, Allison 2500 RDS 6 speed automatic electronic transmission, 90 gallon fuel tank and 135 amp alternator.
- The truck has two 120 gallon capacity 30” diameter A.S.M.E. certified stainless steel paint tanks with hydraulically driven stainless steel agitator assemblies installed inside.
- A thermostatically controlled paint heating system will be installed that includes: “slave heat” drawn off the air compressor diesel engine and an insulation wrap installed on paint lines from the manifolds to the spray guns.
- CENTERLINE GUN CARRIAGE: With auto lift in reverse feature.
- Three (3) Kamber 38-15 spray guns with “flush on the fly feature”
- Three (3) 12-volt linear actuators with dust covers to raise and lower the spray guns
- Two (2) MRL bead guns with adjustable width duckfeet.
- EDGELINE GUN CARRIAGE: With auto lift in reverse feature.
- Two (2) Kamber 38-15 spray gun with “flush on the fly feature”.
- Two (2) MRL bead guns with adjustable width duckfeet.
- Two (2) linear actuators with dust cover to raise and lower the spray guns
- GLASS BEAD SYSTEM
- One (1) 1,500 pound capacity, 30” diameter, A.S.M.E. certified bead tank with Three (3) sight glasses
- Venturi vacuum load system on tank. Venturi exhausted below the deck through muffler.
