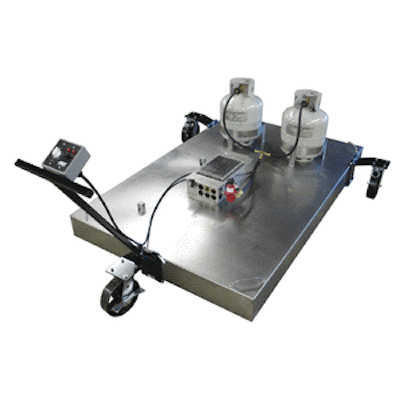

4 x 6 S/C Portable Asphalt Heater
The 4-ft. by 6-ft. S/C portable asphalt heater from Asphalt Reheat Systems has a 24-sq.-ft. heating area for seamless patches, utility reparis, small stamped asphalt areas, and more. The heater can reheat almost any asphalt to a pliable texture in less than 5 minutes. The unit is made standard in a Split Channel version.
Asphalt Reheat Systems
Accu-Therm Infrared
The Thermotrack reciprocating infrared heater focuses on precision heating ability, adjustment capability, and mobility. The electric powered, belt driven, non-stationary infrared heating elements travel back and forth on a rounded rail track for deep heating without surface damage. The graduated heating process allows for each pass over the asphalt to increase temperature and penetration. The heating elements are constructed of stainless steel and wire mesh.Thermotrack's element baffles deflect and focus the infrared heat downward and prevent heat from rising. The unit can heat an area up to 58.5 sq. ft.
Thermotrack
HDE 200 INFRARED ASPHALT HEATER
The 200 infrared asphalt heater from Heat Design Equipment is designed to be used as a 4' x 3' infrared patcher.
- Changes into a 8' x 18" lineal crack/seam heater
- Heat up, and soften a localized area of surface course of asphalt to be reworked and re-compacted
- Soften asphalt to original mixing temperatures in 5 to 10 minutes
Heat Design Equipment, Inc.
Infrared Heater/Generator
Trackless Vehicles Infrared Heater/Generator
- Trackless Vehicles Ltd. offers infrared asphalt heater/generators as a replacement for traditional propane asphalt heaters.
- Heater can be separated from generator frame in less than 5 minutes when not in use
- 80-hp generator produces 45 kW and 175 amps
- Trackless Vehicles Ltd.
Trackless Vehicles Ltd.
IR-ProHeater
- Portable twin burner
- Rugged stainless steel
- 4 ft. by 4 ft. infrared heater
- Tag team two units to creat a 4 ft. by 8 ft. heating deck
- Three height adjustments, low for stamping asphalt and asphalt repair, high for heating preformed thermoplastic
- Use 20- to 40-lb. propane tanks
Pattern Paving
LB 2-16 Infrared Asphalt Recycler
LB 2-16 Infrared Asphalt Recycler
Keizer-Morris International introduces the newest addition to it's line of infrared asphalt recyclers -- the LB 2-16 4'x4'. This unit offers a single operator two independent zones and 16 square feet of infrared powered performance. The sturdy, fully self-contained unit has a unique folding design that makes the unit easy for transport and use.
Mini Combo
Ray-Tech's Mini Combo is an infrared combination 2-ton asphalt reclaimer and pavement heater.
- Trailer mounted
- Dual system pavement heater capable of heating an 8 ft. by 6 ft. area
- For year round road maintenance and patching
Patriot Heating Chamber Upgrade
The Patriot from Kasi now features an upgraded heating chamber with two additional infrared heating elements to increase heat transfer uniformity and reduce exposure time. The chamber now has 8 infrared elements which can heat asphalt for a seamless repair in about 5 minutes.
