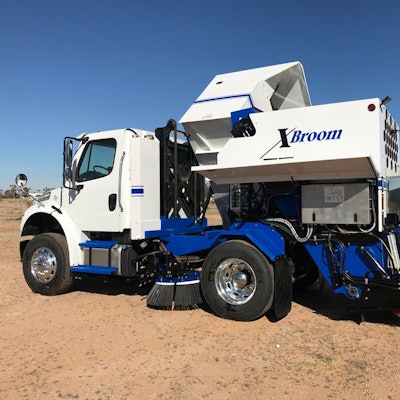

The extremely rugged street sweepers are built to last. The American dream, creating and defining a product that supports a consumers wants and needs to their full extent. This is what Nescon has done over the past 9 years with the XBroom.
Efficiency & productivity are the primary objectives in any industry, this couldn’t be more true with roadwork. Extreme efficiency & super productivity of the XBroom allows virtual single pass sweeping cleanup & considerably more sweeping time before dumping than other street sweepers on the market. More sweeping, less downtime & easy operating equate to larger profit margins.
HOPPER
TYPE -HIGH LIFT / RIGHT SIDE DUMP
CAPACITY -6 YARD TOTAL / 5 YARD USABLE
DUMP HEIGHT -VARIABLE FROM FRAME OF TRUCK TO 150” MAX
MATERIAL-STANDARD -MILD STEEL -OPTIONAL -STAINLESS STEEL LOWER & DOOR
LIFT CAPACITY -15,000 LBS
LIFT TYPE -2-STAGE VERTICAL LIFT MAST (FORKLIFT STYLE LIFT)
MAX DUMP ANGLE -50 DEGREES
DUMP CONTROL -JOYSTICK RAISE & DUMP / TOUCHSCREEN -OPTIONAL DOOR MOUNTED JOYSTICK
LIFT TIME -15 SECONDS TO MAX HEIGHT -60 SECOND LIFT/DUMP/RETURN/LOWER CYCLE
GUTTER BROOMS
TYPE -STANDARD – 4 OR 5 SEGMENT WIRE FILL -OPTIONAL – 4 OR 5 SEGMENT POLY FILL
TILT -HYDRAULIC CYLINDERS CONTROLLED IN CAB UP TO
DIAMETER -46”
DRIVE -DIRECT DRIVE -VARIABLE SPEED CANTROL VIA TOUCHSCREEN -PARKER HYDRAULIC MOTOR -DEDICATED LOAD SENSING HYDRAULIC PUMP -FULL SWEEP POWER/TORQUE AT ENGINE IDLE
ROTATION -STANDARD ROTATION
WIDTH -INFINATELY ADJUSTABLE UP TO 140”
DOWN PRESSURE -PNEUMATIC PRESSURE REGULATORS IN CAB -LOW FRICTION AIR BAG DESIGN
EXTENSION -PNEUMATIC CYLINDER EXTENSION AND RETRACTION
