Equipment Spotlight Portable Pumps 2007

Portable Pumps June 2007

1182802162121 10298215

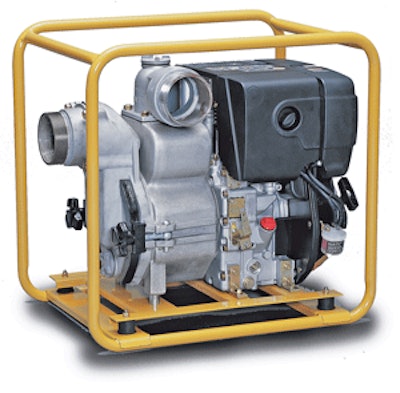

Subaru Robin Diesel Trash Pumps
The PTD310T has a 3-in. discharge port and a 317-gpm maximum capacity, while the PTD410T has a 4-in. discharge port and a 449-gpm maximum capacity.

  • Self-priming
  • 6.8- and 9.9-hp Hatz diesel engines with recoil starter
  • Low-oil shutdown system
  • Hardened cast-iron volute and abrasion-resistant, cast-iron impeller and replaceable wear plate


Grindex INOX Pumps
The INOX series submersible drainage/sludge pumps are constructed of corrosion/chemical-resistant stainless steel.

  • 13-hp Master INOX pump has a 999-gpm maximum flow and a pressure head of 246 ft.
  • Cast parts made of stainless steel and can handle fluids with pH levels from 2 to 10
  • Suitable for tough applications in corrosive environments


ITT Flygt 2600 Series
The 2600 series includes six models with discharges from 2- to 6-in. NPT, heads from 40 to 230 ft. and power outputs from 1.2 to 27 hp.

  • Hydraulic performance ranges from 150 to 1,400 gpm
  • DuraSpin hydraulic system and high-chrome cast iron closed impellers provide improved wear resistance and durability
  • Single screw enables fast, easy adjustments
  • One-piece Plug-In seal with two mechanical seals for double protection against liquid penetration


ABS Pumps Submersible Electric Pumps
These fully submersible pumps feature a sealed motor design and double outer casting that enable them to run dry or in "snore" condition without damage.

  • No priming required
  • Wide base for soft bottom applications or slim centerline version for limited-space applications
  • Sizes available to handle drainage volumes of 5,500 gpm
  • Discharge connection sizes from 1 1/2- to 10-in. diameters


Honda WB Series
The 4.5-hp WB20 and 5.5-hp WB30 are powered by easy to start Honda OHV commercial-grade engines with Oil Alert.

  • WB30 delivers a maximum discharge capacity of 275 gpm and a maximum head of 83 ft.
  • WB20 discharges up to 153 gpm with a maximum head of 94 ft.
  • Heavy-duty full frame protection
  • Rigid-mounted cast iron pump volute


Multiquip InstaPrime Pumps
The InstaPrime Series moves up to 5,000 gpm in model sizes ranging from 6 to 12 in.

  • Deliver heads up to 143 ft. and lifts up to 30 ft.
  • Handle solids to 3.6 in.
  • Patented screw-type impeller delivers increased flow using the same horsepower
  • Powered by 40- to 96-hp Deutz diesel engines
  • 15-gal. fuel tank for extended continuous run times of up to 100 hours


Atlas Copco LWP 2 Submersible Pump
The 23-lb. LWP 2 can handle stones and debris up to 3/8 in. in diameter.

  • Produces up to a 222-gpm discharge and has a lifting head of up to 82 ft.
  • Spark-proof and can run dry without damage
  • Standard 33-ft. discharge hose and snap-lock, quick-release couplings that ease movement around the site
  • Various hydraulic power packs available
  • Optional flow divider and extension hoses


Gorman Rupp 8-in. Environmental Silent Pump
The PA6C60-4045T-ESP is suited for bypass pumping or any applications that require sound attenuation.

  • Provides flow rates up to 2,750 gpm and heads up to 200 ft.
  • Can handle 3-in. solids
  • Able to run dry indefinitely without damage
  • Environmental base contains all fuel and engine liquids that could otherwise leak onto the ground during an accident


Godwin CD160M Dri-Prime Pump
The CD160M automatic Dri-Prime 6" x 6" centrifugal pump offers flow capabilities to 1,900 gpm and discharge heads to 260 ft.

  • High-pressure oil bath mechanical seal design allows for totally dry running for infinite periods of time, while automatically priming and repriming
  • Can pass a solid to 3 in. in diameter
  • Compact yet able to perform in the toughest conditions


Wacker Centrifugal Trash Pumps
This complete line of centrifugal trash pumps includes 2-, 3-, 4- and 6-in. gas- or diesel-powered models.

  • 2-in. PT 2 series pumps up to 210 gpm with solids to 1 in.
  • 3-in. PT3 series gas or diesel models handle up to 400 gpm with solid sizes to 1.5 in.
  • 4-in. PTS 4V pumps 705 gpm with solids up to 2 in. and is powered by a 16-hp Vanguard engine
  • PT 6LT (trailer) and PT 6LS (skid) 6-in. models can pump 1,300 gpm with solids up to 2 in.


Thompson 6-in. Vacuum-assist Pump
The 6V-DDST-4-2011 6-in. vacuum-assisted pump handles up to 3-in. solids, and is capable of flows up to 1,450 gpm and heads up to 88 ft.

  • Cooling system allows pump to run dry without damage, while handling suction lifts up to 28 ft.
  • Super Suction vacuum system provides fast priming and prevents discharge of pumping effluent onto the ground
  • Pump housing does not have to fill with water to obtain original prime at startup
