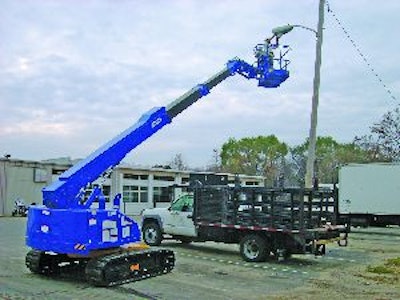

Aichi Boom Lifts
- Self-propelled on a heavy-duty track/crawler frame
- Range from 40- to 70-ft. platform heights
- Isuzu liquid-cooled diesel engines
- Over 55% gradeability
- Available with rubber track pads to allow use on any type of surface
LDC UniLift Boom Lifts
- Includes both telescopic and articulated models
- Working heights up to 42 ft.
- 360-degree effective coverage
- Easily convert to a boom crane
- Battery powered with built-in charger with automatic shutoff
- Power jack setup option for quick and easy outrigger setup
- Weighs less than 3,000 lbs. and can be towed by a pickup truck
Snorkel EMS System
- Offers easy-to-understand communications, calibration and troubleshooting abilities for 100-ft. booms and up
- Diagnostic function accurately communicates operating status via a four-line text message that displays many operating parameters
- Pinpoints and displays error messages without the use of a separate meter
- Records parameter and error log files
- Calibration display walks the user through an easy-to-understand calibration and requires no special harness
- Maximum operating height can be preset between 60 ft. and full unrestricted height in 1-ft. increments
JLG 1250AJP Articulating Boom Lift
- 125-ft. platform height with an up-and-over height of 60.5 ft.
- Restricted platform capacity of 1,000 lbs.
- Automatic self-leveling platform feature
- 180-degree platform rotation
- Full-time four-wheel-drive
- Three steering modes
- Oscillating axle
- Drive-out extendable axles
- Built-in 7,500-watt generator
- 1/2-in. air line integrated within the boom and a quick-coupler at the platform
Genie Z-40/23N Articulating Boom
- 4-ft. 11-in.-wide profile and a 2-ft. 11-in. turning radius allows it to easily fit through standard-sized double doors and maneuver through tight passageways and congested work areas
- 21-ft. 3-in. up-and-over maximum clearance, 46-ft. 5-in. maximum working height and 22-ft. 8-in. maximum horizontal reach
- Variable-speed technology quickly repositions loads up to a 500-lb. lift capacity within the boom’s entire range of motion
- True multi-function control system allows operation of several functions simultaneously
- AC drive system combines DC batteries with three-phase AC drive motors for quiet, energy-efficient operation and continuous control of drive speed
Skyjack Telescopic Boom Lifts
- SJ 40T and SJ 45T telescopic boom lifts feature 40- and 45-ft. platform heights and 360-degree continuous rotation
- 40T offers a 600-lb. platform capacity, while the 45T offers 500 lbs.
- Swing-up cowlings offer unrestricted compartment access
- Swing-out engine tray allows for quick maintenance and inspection
- Axle drive system delivers 30-percent gradeability in two-wheel and 40-percent in four-wheel-drive configuration
Haulotte HB135JRT Telescopic Boom
- 134-ft., 6-in. platform height
- Improved flexibility with vertical and horizontal fly jib
- Dual capacity rating: 507 or 992 lbs.
- 65-ft. 7-in. horizontal outreach
- All-road capabilities: oscillating axle, four steering modes, tight turning radius
UpRight TL37 and TL49K Trailers
- 43- and 55-ft. working height articulated boom lifts
- TL37 features a stable in-line boom and hydraulic outriggers, jib and powered cage rotation as standard
- TL49K features various power options including bi-energy
MMLE TL50 Telescoping Boom
- Offers a 650-lb. capacity at 50 ft.
- Seven-stage telescoping, lightweight, high-strength boom
- Four-wheel steering
- AC power source or can be switched to DC battery mode
- Boom can be angled down in one minute for low stowed height for loading
- For any location requiring higher reach with tight maneuverability and light weight floor loading
Bil-Jax Summit Series
- Trailer-mounted towable booms include the 3632T with 43-ft. 6-in. working height, as well as the 3522A, 4527A and 5533A articulated booms with maximum platform heights from 37 ft. 2 in. to 55 ft. 3 in.
- 500-lb. platform load capacity
- Automatic self-leveling hydraulic outriggers with extra-large, non-marking footpads
- Same simple-to-understand layout and push-button design for ground level and platform controls
- Can be transported by standard 1/2-ton pickup at up to 65 mph
Genie GS-68 RT Scissor Lifts
- True traction control drive system
- Combined divider valves divide and isolate hydraulic flow to each wheel for maximum power transfer to the ground even when one or more wheels lose contact
- Provide access to sites with 35% to 40% slope ratings
- Two drive modes include Series Mode for flat or level paths and Parallel Mode for traveling uphill
- Hydraulic dynamic braking system
- Gas or diesel models
Haulotte HA 41 PX Articulated Boom
- Delivers a 65-ft. maximum outreach with an articulated jib pivot at 58 ft. 3 in.
- Full proportional controls and simultaneous boom functions
- 360-degree continuous turntable rotation and 180-degree hydraulic platform rotation
- Articulated fly jib offers 140-degree arc of movement
- Four-wheel drive and four-wheel steering with swinging, extendable axles
- 40-percent gradeability
JLG ES Series Scissor Lifts
- Platform heights range from 19 to 40 ft.
- Platform capacities from 500 to 1,000 lbs.
- Long battery duty cycles can last multiple shifts
- Smooth controls and fast lift
