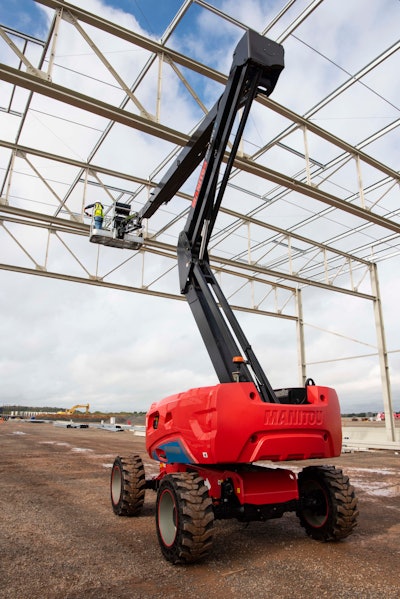

Manitou All-electric ATJ60E Articulated Boom Lift

The all-electric ATJ60E replaces the 42.9-hp diesel engine found on the ATJ60 articulated boom lift with lead-acid batteries and two asynchronous electric motors that enable comparable performance with zero emissions. The unit has a working height of 65 ft. 7 in. and a platform height of 59 ft. 7 in. The basket has a 507-lb. capacity and features a large color monitor that displays information via an alert system. An integrated charger located on the turret can be used to recharge the lift via a standard 230-volt plug. Four-wheel drive, active oscillating axle and a high ground clearance adapt to even the most difficult conditions.

• Safety features include pedal presence in the basket, basket overload and tilt sensor, electric emergency pump, double rail and meshed floor and a Secondary Protection System
• Weighs 15,653 lbs. and has stowed dimensions of 19' 11" x 7" 9" x 8' 8"
• Platform dimensions of 5' 11" x 2' 7"
• One-point slinging without a spreader bar enables safe transport
