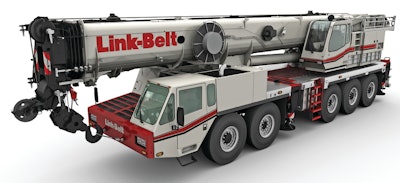

ATC-3210 All-terrain Crane

Link Belt Atc 3210 11293627
Link Belt Construction Equipme 10947782

The ATC-3210 all-terrain crane features maximum counterweight, rigging, matting and fly extensions and can move in just three truckloads.

  • Six-section boom made from ultra-high strength steel; two-lace design of each section has multiple longitudinal bends for strength
  • Teflon inserts keep boom lubed; universal for all boom sections
  • Seven boom modes
  • Cummins engine meets Tier 4 Final and EPA 2013 on-highway requirements
  • Anti-lock disc brakes, transmission intarder and true engine compression brakes help slow the crane
  • Outrigger and suspension controls with auto-level
  • Variable speed on-highway steering; four auxiliary steering modes
  • Emergency steering, cruise control and traction control standard
  • Standard extra steering cylinders for maneuvering in difficult terrain
  • Traction control features mud and snow setting to allow more slip when needed
  • Inter-axle and cross-axle differential locking available
  • Multiple steering modes controllable from the carrier cab
  • Military-grade two-piece aluminum wheels
  • Link-Belt's Hydrogas suspension system
  • 12-ft. heavy-lift fly with two-line, one-load lift procedures; optional three-piece bi-fold fly hydraulically offsets from 2 to 45 degrees; manual four-position offset available
  • Single occupancy lower cab; upper cab tilts up to 20 degrees
  • Five carrier cameras: two on the lower and three on the upper with split screen monitor inside the operator’s cab
  • Pneumatic and electrical quick disconnect connections for trailer or boom dolly
  • ANSI B 30.5 certification
