TADANO MANTIS Corp. Introduces the GTC-1200

Tadano Gtc 1200 11324505
Tadano 11080557

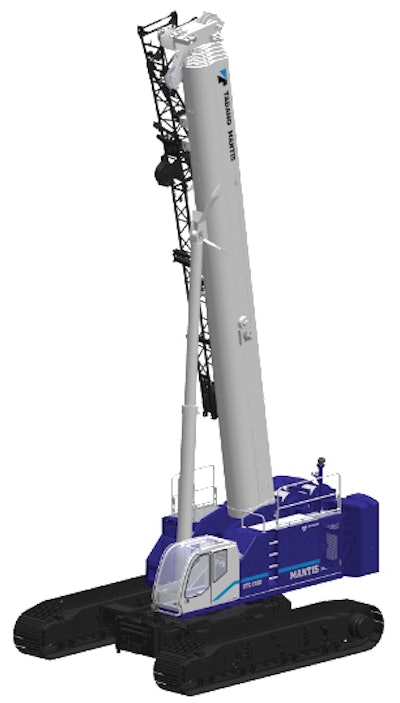

The GTC-1200 is the first new crane from TADANO MANTIS Corp. since it was acquired by TADANO, LTD in December 2008. With full power, round boom with two extension modes, HELLO-NET telematics, the TADANO AML-C load moment system, and integration of hydraulic cylinders, winches, and jib systems from the other TADANO Group companies.

  • Full power, 5-section 42.1 ft. – 155 ft. boom was designed to perform for lift work, while also being capable of out-of-level, pick-and-carry, and foundation work.
  • The main boom is complimented with a jib system that includes a 12.5 ft. heavy lift jib with a maximum capacity of 44 ton which is part of the standard bi-fold jib that has lengths of 33.9 ft.  59 ft. There are also optional 23 ft  lattice insert (max 2) sections.
  • The entire jib system can offset at 0-degrees, 20-degrees, and 40-degrees, and when fully erected, gives a maximum tip height of 269 ft.
  • Powered by a Cummins Tier 4f, QSL9 diesel engine rated 350 hp. (261 kW) @ 2100 rpm.
