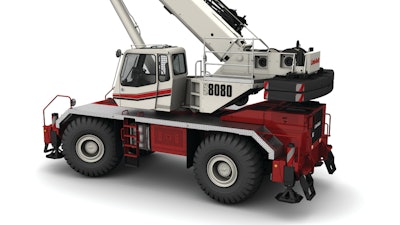

Link-Belt RTC-8080 Series II

8080 Left Hr 11324532

Link-Belt’s 80-ton RTC-8080 Series II rounds out Link-Belt’s line of mid-range rough terrain cranes and offers all of the features that customers and operators have come to expect.  Offered in both a fully emission compliant power option as well as an export version that remains Tier III. Both versions of the engine are Cummins QSB 6.7L 270 hp. Notable new features include:

  • Remote controlled high intensity boom floodlight
  • Standard camera package and aluminum decking
  • The extend system which incorporates the two mode telescope proportioning system known as
  • Three on-board fly options available that feature four manual offset positions of  2-, 15-, 30-, and 45-degrees. crane.
  • Confined Area Lifting Capacity or CALC feature allows for three  different outrigger positions (fully extended, intermediate and fully retracted).
  • Electronic throttle for improved throttle response
  • Hydraulic disc brakes for both service brakes and parking brake
  • Single or dual axis joystick controls for smooth, precise control
  • Weather proof electrical connectors and relays throughout for outstanding long-term reliability
  • Color coded and numbered wiring is protected by a flame retardant polyethylene insulation
  • Full lighting package includes cab lights, headlights, turn indication, marker, backup, and stop
  • No deducts in capacity when telescoping loads
  • Powder-coated tubing is utilized throughout the crane
  • Hand-held outrigger controls
  • Pre-painted components and plated hardware
  • O-ring face sealed hydraulic components with staggered fittings
  • Well organized electrical and hydraulic routings throughout
