Third Terex Crossover Boom Truck Lifts 80 Tons

New Crossover blends truck-crane and boom-crane designs to offer a 360° load radius; max tip height reaches 189 ft.

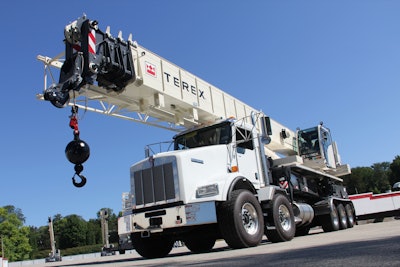

Terex Crossover 8000 56212e65a4ea6
Terex 10835350

The Crossover 8000 is an 80-ton (US) capacity class boom truck that blends truck crane and boom crane designs to offer a 360° load radius. Featuring the same upper structure as the T780 telescopic truck crane, the Crossover 8000 offers almost identical load ratings throughout most lift situations, regardless if lifting from the front, rear or sides of the crane.

  • Three-position X-pattern outrigger offers minimum 6.5-ft., middle 19-ft. 9.3-in. and maximum 26-ft. position spans
  • Four-section main boom offers a 126-ft. length with a 189-ft. maximum tip height
  • Fixed length 33-ft.and extendable to 57-ft. jib designs with 0°, 15° and 30° offset positions
  • Can be equipped with either one or two winches
  • Top swivel ball with hook and latch rated at 7 tons (US)
  • Available quick-reeving hook block features five sheaves to offer an 80-ton (US) capacity
  • Infinitely variable tilt-up operator cab tilts up to 18°
  • Upper lift structure approved for the Freightliner chassis
  • Travel speeds in excess of 70 mph (113 kmh)

Crossover 6000 Boom Truck
