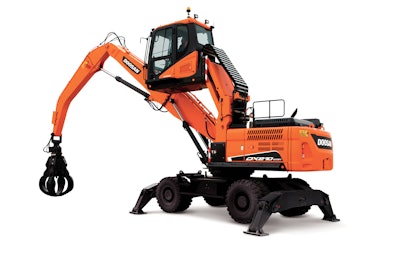

Doosan's DX210WMH-5 wheel material handler features standard hydraulic cab risers for increased visibility and a straight boom and droop nose arm for optimal performance.
- Dual-boom cylinders
- Under-mount arm cylinder placement
- Floor pedal for operators to activate two-way auxiliary hydraulics
- Ergonomic joystickRear camera and camera monitor
- Alternator provides 80 amps
- Emergency stop on seat base
- Auto shutdown
- 5/8-cu.-yd., 360-degree hydraulic rotating four-tine grapple with semi-closed tine design
- Magnet also approved for use with machine
- Four selectable power modes: Power+, Power, Standard and Economy
- Lifting work mode provides increased pump torque, low engine rpm and automatic power boost when lifting and placing materials
- Options include: V-shpae side guard, solid tires and generator set
- Horsepower (gross): 189 hp
- Operating weight: 58,200 lb.
- Swing torque: 59,224 lbf.-ft.
- Max. reach (ground): 35 ft. 9 in.
- Max. loading height (pin): 39 ft. 8 in.
- Swing speed: 0 to 9 rpm
- Travel speed (high): 21.8 mph
- Front steerable axle: standard
- Hydraulic elevating cab: standard
- Front and rear stabilizers: standard
