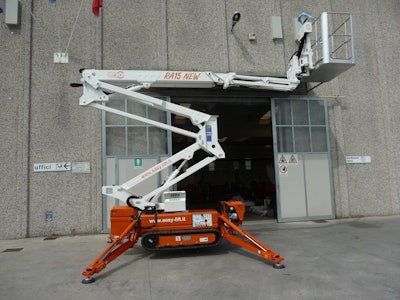

Easy Lift's ultra-compact 50-23AJ boom lift has a double pantograph lower boom that reaches an unrestricted 23 ft. of outreach with full basket capacity of 507 lb.
- Wired remote control (start/stop + drive + outriggers + self-stabilization)
- Compact dimensions - overall length of 12 ft. 6 in. without basket, low profile of 78 in. and 31.5-in. width
- Hydraulic variable width carriage can make tracks wider for an increase in stability and enhance climbing capabilities
- Comes standard with basket rotation, 5-ft. jib and basket manual leveling live at full basket capacity
- Live hydraulic levers at base and in basket provide smooth and precise movements to operators
- Air/water line from base to basket and AC GFI in basket
- Options include self-levelling outriggers, wireless remote control, fiberglass one- or two-man basket, winter start kit, and more
Fill out the form below to request more information about Easy Lift 50-23AJ Ultra-Compact Boom Lift
