Volvo Lifts PL3005E Pipelayer's Capacity, Fuel Efficiency

Volvo's PL3005E rotating pipelayer features a 6% increase in horsepower, 8% increase in max torque, 7% increase in lift capacity and 5% greater fuel efficiency compared to the previous model

Volvo 3 5964de0fb0236
C4c04e10

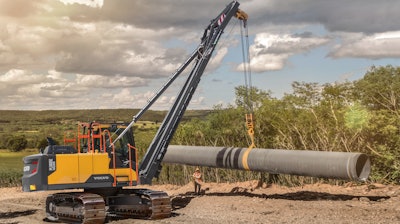

Volvo's PL3005E rotation pipelayer features a 6% increase in horsepower, 8% increase in max torque, 7% increase in lift capacity and 5% greater fuel efficiency compared to the previous model.

  • 360-degree swing capacity excavator-based platform
  • Work across rugged terrain and on slopes of up to 35 degrees
  • Load Management System (LMS) with 7-in. full color display and intuitive graphics
  • Visual and auditory signals when load limit is reached
  • Green, yellow and red LED lights on side of boom indicate load status
  • Mechanical anti two-block system uses wire sensor to prevent winch blocks from coming into contact during lifting
  • 241-hp Volvo D8J Tier 4 Final engine
  • Volvo CareTrack telematics system standard
  • Optional excavator conversion kit
  • Tipping capacity: 120,000 lb.
  • Rated capacity: 68,000 lb.
  • Standard boom length: 24 ft. 4 in.
  • Extended boom length: 30 ft. 4 in.
  • Operating weight: 79,500 lb.
