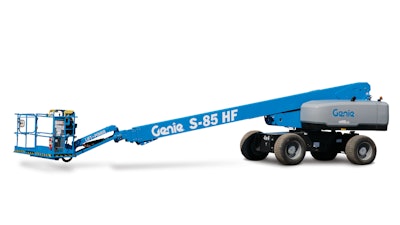

The new Genie S-80 high float (HF) and S-85 HF telescopic booms are designed to perform heavy-lifting tasks in sensitive ground conditions, such as sand and turf. Engineered to “float” on soft or delicate surfaces, the Genie S-80 and S-85 HF booms protect softer surfaces during operation that could be damaged by the more aggressive tread on regular rough terrain tires.
- Based on the design and engineering of the Genie Xtra Capacity (XC) booms
- Comply with overload restriction and terrain sensing guidelines in the new ANSI A92 and CSA B354 industry standards in North America, as well as European EN280 and Australian AS 1418.10 standards
- Dual lift capacity of 600-lbs. unrestricted and 1,000-lbs. restricted
- Automatic envelope control enables lift to automatically retract as the booms reach their operating envelope, allowing for simple platform positioning and an enhanced operator’s experience
- Equipped with a load sense cell that continuously checks the weight in the platform and limits the operating envelope to match the load chart, all while boasting the ability to do zero load field calibrations
- Expanded working zone thanks to a chassis tilt sensor incorporated into the machines’ function
- Air-filled 41/18LL x 22.5 20 ply tires
- S-80 HF model has 86 ft. working height with 68 ft. 6 in. of outreach; S-85 HF boom has 91 ft. working height with 72 ft. 6 in. of outreach
- Both units are available with a 74-hp Tier 4F/Stage IIIB diesel engine
