Adjustable Top Barrel, Bracing Kits, and Base Frame Trolley System - Accessories for Enerpac JS-Series Jack-Up System

Enerpac announced three accessories for its JS-Series Jack-Up Systems that offer expanded capabilities.

This base lifting unit comes with one top barrel and 3D swivel saddle.
This base lifting unit comes with one top barrel and 3D swivel saddle.
Enerpac
Enerpac Logo

Enerpac's Adjustable Top Barrel, Bracing Kits, and Base Frame Trolley System offer more project solution possibilities - all accessories for the company's Jack-up system.

The Jack-up system is a multi-point lifting system. A typical system set up includes four jack-up units positioned under each corner of a load. A load is lifted in increments as barrels are slid into the system and stacked, forming “lifting towers.” A Jack-Up System is operated and controlled by a computer control unit. Each unit’s lifting and lowering operations occur simultaneously; the computer control unit’s synchronous technology maintains the balance of the load.

Expanded capabilities include:

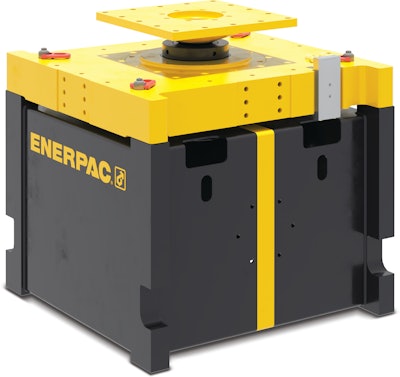

  • Make fine adjustments to the starting height with the Enerpac Adjustable Top Barrel. This base lifting unit comes with one top barrel and 3D swivel saddle. It includes a standard Enerpac HCRL series double-acting lock nut cylinder and can be operated with separate 700 bar (10,000 psi) pump. Designed for JS125, JS 250, and JS 500 models, it can be built into Jack-Up System on first purchase, or existing standard top barrels can be upgraded.
  • Lift up to 50% higher with Enerpac Bracing Kits. Designed for the JS125 and JS250 models, the kits connect four towers and includes four mid barrels, four adjustable braces, and eight diagonal tension bars
  • Transport a load horizontally with the Enerpac Base Frame Trolley System. The system includes one trolley and is designed for the JS125 and JS250 models.
