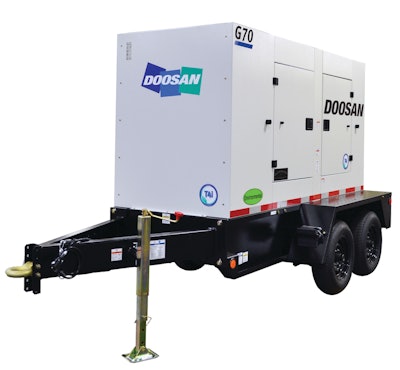

G70WCU
The Tier 4 Interim compliant G70WCU, G85WCU and G125WCU generators feature a cooling system with a variable speed cooling fan to keep the generators cool and fuel efficient in even the most extreme temperatures.
- Deep air intake pockets protect generator from external elements and eliminate water ingression
- Airflow management routes engine heat without compromising sound attenuation
- Cummins QSB5 engine with a runtime range from 24 to 38 hours at 100% load; diesel oxidation catalyst
- Thermostatically controlled clutch-driven cooling fan
- Quad Voltage selection feature: select from 120/240V-1Ø, 208V-3Ø, 480V-3Ø, and 600V-3Ø
- Dual frequency to select 50 or 60 Hz dependent on application needs
- LED-backlit analog meters for monitoring of vital parameters
- Full diagnostic display alerts operators of fault conditions
- Dual scale ammeter measures and provides read-outs on current changes
- Voltage selector switch with VSS protection scheme
- Heavy-duty skid base with integrated 24-hour fuel cells
- Heavy-gauge, galvannealed steel enclosure
- Tandem-axle running gear
- G70WCU: 5% output increase at 77 kVA/62 kW; 86% increase in runtime at 38 hours
- G85WCU & G125WCU: 97 kVA/77 kW and 128 kVA/102 kW respectively; select power node that best meets application needs
- Operating sound levels: 64 to 67 dBA
