DTM70-H Direct Transmission-mounted PTO Driven Air Compressor with Hydraulics

VMAC's DTM70-H provides fleets with continuous duty compressed air and hydraulic power to run other equipment in one complete, compact system

Vmac1
Vmac Logo Red&black

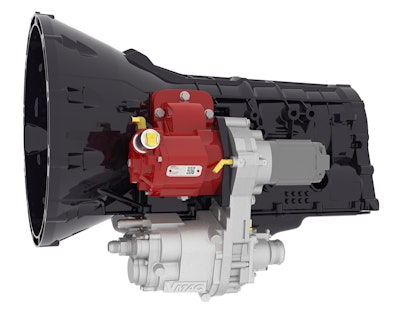

VMAC’s DTM70-H combines an oil-injected rotary screw air compressor and hydraulic pump, which can simultaneously operate to maximize productivity.

  • Provides up to 70 cfm of air at 100 psi and up to 14.9 gpm at 3,265 psi, dependent on pump size and engine rpm
  • Frees up space because it mounts under the truck
  • Weighs just 180 lbs., saving up to 600 lbs. on service trucks
  • Allows users to carry more materials or equipment, take advantage of better fuel economy or even downsize their service truck classification
  • Application-engineered for 2017-2019 Ford F250 to F550 Super Duty work trucks with 6.7L Power Stroke diesel, and TorqShift Automatic Transmission (4x4 or 4x2)
  • Integrates with standard crane controls

[SPEC SHEET] VMAC DTM70-H Direct-Transmission Mounted PTO-driven Air Compressor

Case Study: Onboard Compressor Helps Fanelli Equipment Repair Save 500 lbs. on Truck GVW


Request More Information
Fill out the form below to request more information about DTM70-H Direct Transmission-mounted PTO Driven Air Compressor with Hydraulics
