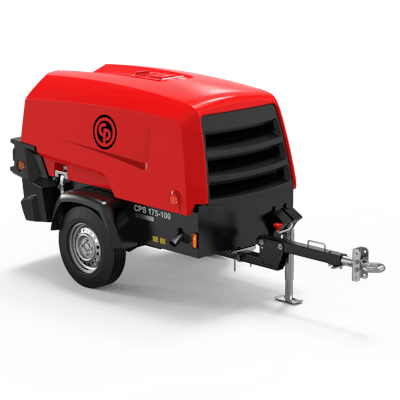

The Chicago Pneumatic CPS 175-100 air compressor is powered by a liquid-cooled, four-cylinder turbocharged Kubota diesel engine. Designed for outdoor construction sites, the oil-injected air compressor is secured to a portable single-axle trailer.
This unit hosts the new generation C67 Screw element in its air end combined with a Kubota engine, complying with the Tier 4 Final emission standard. During use, the CPS 175-100 offers up to 125 psi and 170 cfm.
The Kubota turbocharged engine provides power to operate the compressor continuously at full load. Cold start options are available for temperatures down to -4°F. The 15.8-gallon fuel tank is sized to allow eight hours autonomy at 75% load.
The instrument control panel is located on the back of the compressor canopy. Standard instrument package includes an operating pressure gauge and fully diagnostic ECU controller with 3.5-in. display. The intuitive XC1004 controller manages the engine ECU operating system, as well as a number of safety warnings and shutdowns on various parameters.
Capable of withstanding rugged elements, the compressor’s frame comes standard with ASTM A653 zincor steel platework with powder coat paint finish providing corrosion resistance. The canopy is sound attenuated to meet various noise requirements.
