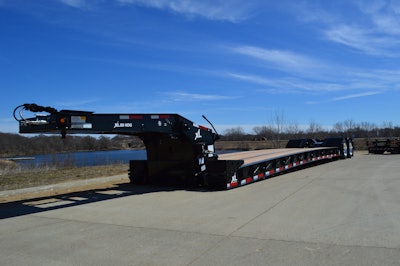

XL Specialized Trailers XL 80 Low-profile HDG Trailer

Model provides a needed transport solution for lighter-duty equipment that contractors use and move every day

XL 80 LP HDG20150402 2288 558448d877d1c

The lightweight XL 80 two-axle, low-profile, hydraulic detachable gooseneck trailer is rated at 80,000 lbs. overall and 80,000 lbs. in 10 ft. concentrated.

  • 11-ft.-long hydraulic gooseneck with a low-profile design
  • Five-position ratchet-style variable ride height allows users to adjust the neck height to fit various loads
  • Available in a 44-ft. 6-in. overall length with 24 ft. in the well, a 46-ft. 6-in. overall length with 26 ft. in the well or a 48-ft. overall length with 27 ft. 6 in. in the well
  • Short gooseneck allows for a longer main deck to accommodate a long load or multiple small pieces of equipment
  • Main deck constructed with four 14-in.-tall, fully cambered I-beams and 8- and 4-in. stubbed junior I-beams on 12-in. alternating centers
  • 22-in. loaded deck height with 8 in. of ground clearance
  • Standard features include 31-in. front flip ramps, six bent D-rings per side, chain drops, 12-in. swing-out outriggers on 24-in. centers and raised apitong decking
  • Rear bridge transition of 32° features traction aids for loading
  • 9-ft. 6-in.-long rear deck has a 40-in. loaded deck height and is prepped for a flip axle
