23000 OTR Tire Service Crane

Stellar23 10181695
Stellar Industries Logo 10942735

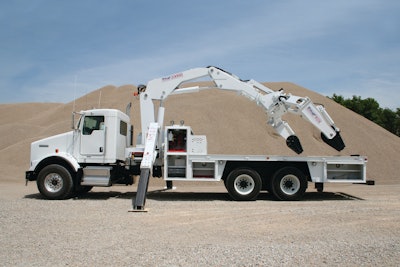

The model 23000 crane has a 230,000-ft.-lb. capacity and can lift 23,000 lbs. at 10 ft. and 14,000 lbs. at 16 ft. 5 in. from the centerline of the crane. It features a hexagonal boom with 315° of rotation, radio remote control system and hydraulic A-frame-style out and down stabilizing system. The TM12154 tire manipulator, available as an option, can accommodate tires from 48 to 154 in. in diameter and up to 12,000 lbs. It features over 315° of body rotation and either 90° or continuous rotation clamping pads. The complete package includes the crane, tire manipulator, a 20-ft.-long steel service body and a SHD-245 American Eagle air compressor rated at 110 cfm at 175 psi.
