An Update on NCAT’s Latest Test Cycle

New partnership with MnRoad will allow for testing in cold weather climates

TestTrack 1 566eed3c394a3

After the successful construction of new test sections last summer, the National Center for Asphalt Technology (NCAT) has begun its sixth cycle of accelerated pavement testing, which includes structural experiments, surface mix experiments and pavement preservation studies.

Sponsors of the sixth cycle include highway agencies and private sector partners. The number of sixth cycle sponsors funding on and off-Track research is currently at 18, and additional sponsors are anticipated.

The sixth research cycle is commonly referred to as the “2015 Track” and will last until the end of September 2018.

The first phase of the sixth cycle consisted of constructing test sections on and off the Test Track. Representatives from research sponsors make on-site visits during this phase in order to ensure that the sections satisfy their research needs.

In the second phase, each section on the track is subjected to 10 million equivalent single axle loads (ESALs) of heavy truck traffic applied over a period of two years. The performance of each track section is closely monitored on a weekly basis.

A new automated pavement distress data collection vehicle will be used to quantify roughness, macrotexture, rutting, and cracking in the same manner used by most state highway departments for their pavement management systems.

Other tests such as surface friction, falling weight deflectometer, sound, and permeability are also conducted. Similar performance data is conducted on the off-track sections, but due to the open traffic on these roadways, data collection is conducted on a less frequent basis than the closed-loop track.

The final part of the three-year cycles at the test track involves forensic analyses of damaged sections in order to determine the contributing factors to pavement distresses. Many forensic investigations conducted during this stage include destructive testing such as trenching and coring.

The scope of the pavement preservation research has been expanded in this cycle to include continued evaluation of Lee County Road 159, a low volume route, and new treatment sections on U.S. Route 280, a much higher traffic volume roadway.

Pavement preservation focus

A major focus of the sixth research cycle is to quantify the life-extending benefits of different pavement preservation treatments by determining the field performance of treatments applied at various stages of pavement life and decay, says Dr. R. Buzz Powell, P.E., NCAT Assistant Director & Test Track Manager.

In this highly controlled experiment, quantifying the benefits of various pavement preservation alternatives as a function of pretreatment condition will provide transportation agencies an objective basis for pavement management decisions.

In 2014, pavement preservation treatments were applied to several Test Track sections at predetermined distress levels. Traffic and examination of these sections, as well as those on Lee County Road 159, will continue throughout this research cycle.

“In 2016, we will continue to monitor the sections on Lee Road 159 placed in the summer of 2012, the sections placed on US-280 in the summer of 2015, and the sections that will be placed at MnROAD in the summer of 2016,” says Powell. “Numerous treatments and/or treatment combinations included in this study have, to the best of our knowledge, never been done before.”

NCAT and Minnesota Department of Transportation (MnDOT) -- through its MnROAD facility -- have formally partnered for the first time to execute pavement preservation and asphalt mixture performance testing experiments with a nationwide implementation impact.

This partnership brings about expansion of experiments to include a cold-weather climate. Many of the same pavement preservation treatments installed by NCAT in Alabama will also be installed on low- and high-volume routes in Minnesota.

“The overall goal of this research at NCAT is to quantify the life-extending and condition-improving benefits of pavement preservation treatments and treatment combinations on flexible pavements with diverse levels of pretreatment condition in a southern environment under low traffic, high traffic, and accelerated traffic conditions,” says Powell. “Conversely, the goal of complementary research at MnROAD is to do the same thing for their northern environment.”

The causes of cracking

While many tests have been developed to evaluate cracking potential of asphalt mixtures, it’s not clear which ones correlate the best with field performance and what criteria could be used in specifications, says Powell.

This is another focus area of the 2015 Pavement Test Track cycle. The objective is to validate laboratory cracking tests by establishing correlations between test results and measured cracking in pavement test sections.

New track sections have been constructed with asphalt surface layer mixtures that have a range of expected cracking susceptibilities. Other factors that can impact top-down cracking, such as underlying pavement structure and differences in aging, have been controlled to the highest degree possible.

A battery of laboratory cracking tests will be performed, which will include semi-circular bend tests using the Illinois and Louisiana methods, the energy ratio method, and the Texas overlay test.

The analysis of the laboratory cracking tests will identify which method provides results that best correlate with field cracking while also considering practicality for use in mix design control testing, cost-effectiveness, and the ability to accommodate recycled materials, new and future additives, and mix combinations.

In 2016, MnROAD will also build complimentary cracking group sections to validate low-temperature cracking tests. These parallel studies are aimed at producing findings that can be directly implemented by a larger geographic base of state departments of transportation.

High-volume experiments

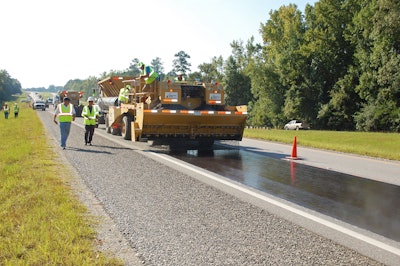

New pavement preservation treatments have also been installed on a nearby section of U.S. Route 280, expanding the scope of the research to include a higher volume route and cold recycling techniques.

These sections serve as a complement to existing sections on the Test Track and Lee County Road 159 and are essential to accurately quantify the condition improving benefit curve of each treatment/treatment combination under different levels of traffic.

The core objective of this research is to quantify the benefits of pavement preservation on a more typical highway, somewhere between the accelerated damage environment of the track and the low ADT environment of Lee County Road 159, says Powell.

“Results from the expanded 2015 preservation experiment will provide a rational starting point for the implementation of a life cycle cost based preservation treatment selection process that can be refined over time with location-specific pavement performance feedback,” says Powell. “A second objective is to develop guide specifications and recommend guidelines for quality assurance testing and inspection of pavement preservation treatments.”
