New Developments in Quality Assurance for Concrete Pavement Mix Design

New developments in concrete pavement quality assurance can provide important information on the quality, durability, and compliance with mix design specifications.

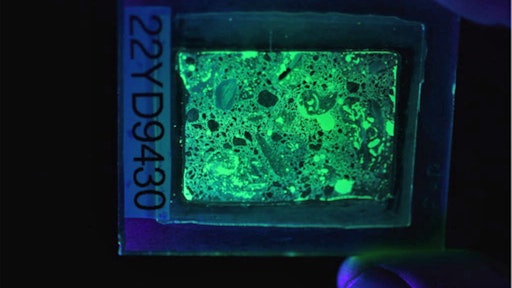

Figure 2. Photograph of a fluorescent thin section in UV light, which makes the concrete glow.
Figure 2. Photograph of a fluorescent thin section in UV light, which makes the concrete glow.
Chunyu Qiao and DRP, a Twining Company

The construction of concrete pavements can see unexpected events that require contractors to verify the quality and durability of the in-place concrete. Such events include exposure to rain during placement, late applications of curing compounds, plastic shrinkage cracking hours within hours of the placement, and problems texturing and curing the concrete. Even when strength requirements and other material tests are satisfied, engineers may call for the removal and replacement of sections of pavement over concerns regarding the compliance of in-place material with mix design specifications.

In such cases, petrography and other complementary (but specialized) test methods can provide important information on the quality and durability of concrete mixtures and their compliance with job specifications.

Figure 1. Examples of fluorescent microscope photomicrographs of the paste from concrete with 0.40 w/c (at top left) and 0.60 w/c (at top right). The lower left photo shows the apparatus for measuring bulk resistivity of a concrete cylinder. The lower right graph shows the relationship between bulk resistivity and w/c.Figure 1. Examples of fluorescent microscope photomicrographs of the paste from concrete with 0.40 w/c (at top left) and 0.60 w/c (at top right). The lower left photo shows the apparatus for measuring bulk resistivity of a concrete cylinder. The lower right graph shows the relationship between bulk resistivity and w/c.Chunyu Qiao and DRP, a Twining Company

W/CM & Concrete Quality

Abram’s Law:
“The compressive strength of a concrete mix is inversely related to its water/cement ratio.”

Professor Duff Abrams first described the relationship between water-cement ratio (w/c) and compressive strength in 1918[1], formulating what is now known as Abram’s Law: “the compressive strength of a concrete mix is inversely related to its water/cement ratio.” In addition to controlling compressive strength, the water-cementitious materials ratio (w/cm), is now favored as it recognizes the replacement of portland cement with supplemental cementitious materials such as fly ash and slag. It is also a critical parameter for concrete durability. Many studies show that concrete mixtures with w/cm below ~0.45 are durable in aggressive environments, such as areas exposed to freeze-thaw cycles with de-icing salts or areas where high concentrations of sulfate are present in soils.

What is Capillary Porosity & Why Does It Matter?

Capillary pores are an intrinsic part of the cement paste. They consist of spaces between cement hydration products and unhydrated cement grains that were once filled with water.[2] Capillary pores are much finer than entrained or entrapped air voids and should not be confused with them. When capillary pores are connected, fluids from the external environment can migrate through the paste. This phenomenon is known as percolation and it must be minimized to ensure durability. Durable concrete mixtures have a microstructure where capillary pores are segmented, rather than connected, which occurs when w/cm is less than ~0.45.

Although accurately measuring the w/cm of hardened concrete is notoriously difficult, a reliable method to do so can provide a significant quality assurance tool for investigating hardened in-place concrete. Fluorescence microscopy provides one solution. Here’s how it works.

Fluorescence Microscopy & Image Analysis

Fluorescence microscopy is a technique that uses epoxy with a fluorescent dye to illuminate details in a material. Used most commonly in the medical sciences, it has important applications in materials science as well. The systematic application of this method in concrete began in Denmark almost 40 years ago[3]; it was standardized for estimating w/c of hardened concrete in the Nordic Countries in 1991 and updated in 1999[4].

For measuring w/cm in cement-based materials (i.e. concrete, mortar, and grout), thin sections, or pieces of concrete that measure about 25 microns or 1/1000th of an inch in thickness are made using fluorescent epoxy (figure 2). The process involves cutting tablet-shaped pieces of concrete (called billets) that measure about 25 x 50 mm (1 x 2 in.) in area from a concrete core or cylinder. The billets are glued to a glass slide, placed in a vacuum chamber, and epoxy is introduced while under vacuum. As w/cm increases, so does the connectivity and quantity of the capillary pores, so that more epoxy infiltrates the paste. We examine the thin section under the microscope using a special set of filters to excite the fluorescent dye in the epoxy and filter out extraneous signals. In these images black areas represent aggregate particles and unhydrated cement grains, both with essentially 0% porosity, the bright green circles are voids (not pores) that have essentially 100% porosity and the speckled green "stuff" between these features is the paste (figure 2). The distinct green color of the paste becomes increasingly brighter as the w/cm and capillary porosity of the concrete increase (see figure 3).

Figure 2. Fluorescent light photomicrograph of a thin section indicating aggregate particles, voids (v) and paste. The horizontal field width is ~ 1.5 mm.Figure 2. Fluorescent light photomicrograph of a thin section indicating aggregate particles, voids (v) and paste. The horizontal field width is ~ 1.5 mm.Chunyu Qiao and DRP, a Twining Company

Figure 3. Fluorescent light photomicrographs of thin sections showing progressively brighter green paste with increasing w/cm. These mixtures are air-entrained and contain fly ash.Figure 3. Fluorescent light photomicrographs of thin sections showing progressively brighter green paste with increasing w/cm. These mixtures are air-entrained and contain fly ash.Chunyu Qiao and DRP, a Twining Company

Image analysis involves the extraction of quantitative data from images. It is used in many different scientific fields, from remote sensing to microscopy. Each pixel in a digital image essentially becomes a data point. This method allows us to attach numbers to the different brightness levels of green seen in these images. With the revolution in desktop computing power and digital image acquisition in the last 20 or so years, image analysis is now an accessible and practical tool for many microscopists, including concrete petrographers. We routinely use image analysis to measure the capillary porosity of the paste and over time have found strong systematic statistical correlations between w/cm and capillary porosity, as shown in the graphs below (figures 4 and 5).


Figure 4. An example of data obtained from a fluorescent photomicrograph of a thin section. This graph plots the number of pixels for a given gray level in an individual micrograph. The three peaks correspond to aggregate (orange curve), paste (gray area) and the void (unfilled peak farthest to the right). The curve for the paste allows one to calculate an average capillary porosity and its standard deviation.Figure 4. An example of data obtained from a fluorescent photomicrograph of a thin section. This graph plots the number of pixels for a given gray level in an individual micrograph. The three peaks correspond to aggregate (orange curve), paste (gray area) and the void (unfilled peak farthest to the right). The curve for the paste allows one to calculate an average capillary porosity and its standard deviation.Chunyu Qiao and DRP, a Twining Company Figure 5. This graph summarizes average capillary porosity measurements and 95% confidence intervals for a range of w/cm in mixtures that consist of straight cement, cement with fly ash and cement with natural pozzolan binders.Figure 5. This graph summarizes average capillary porosity measurements and 95% confidence intervals for a range of w/cm in mixtures that consist of straight cement, cement with fly ash and cement with natural pozzolan binders.Chunyu Qiao and DRP, a Twining Company

Putting It All Together

At the end of the day, demonstrating that concrete in place complies with mix design specifications requires three independent tests. Whenever possible obtain core samples from placements that satisfy all acceptance criteria in addition to samples from placements in question. Cores from accepted placements can serve as control samples that you can use as a benchmark for evaluating the compliance of the placements in question.

The three-step approach:

  1. Perform petrographic examination per ASTM C856 to verify the components present in the concrete are consistent with mix design parameters. For example, petrography will verify if fly ash or other supplemental pozzolans are present and that the gradation and composition of the aggregate is consistent with the mix design. Petrographic examination is also essential to verify that the concrete is well consolidated and that curing is adequate and that there is not an excessive amount of microcracking near the surface that could diminish performance and durability. As part of our petrographic work, we measure w/cm using fluorescence microscopy to verify mix design compliance and durability.
  2. Measure the volumetric proportions of paste, aggregate, and air voids per ASTM C457 and compare them with volumetric proportions indicated by mix design data. One can also compare volumetric proportions between concrete already accepted for the job and the placements that are in question.
  3. Measure bulk electrical resistivity per ASTM C1876 and calculate Formation Factor if possible. Compare these measurements to verify that the transport properties, and therefore durability, of the questioned placements, are consistent with acceptable placements.

In our experience when reasonable engineers of record see the data obtained from these tests, they are usually amenable to accepting placements provided other key engineering properties (such as compressive strength) are satisfied. By providing quantitative measurements of w/cm and the Formation Factor, we can go above and beyond testing specified for many jobs in showing that the mixtures in question have properties that will translate to good durability.

About the authors

David Rothstein, Ph.D., P.G., FACI is the principal petrographer for DRP, A Twining Company. He has over 25 years of experience as a professional petrographer and has personally examined more than 10,000 samples from more than 2,000 projects all over the world.
Chunyu Qiao, PH.D, the Chief Scientist at DRP, a Twining Company is a geologist and materials scientist with over ten years of experience working with cementitious materials as well as natural and processed rock products. His expertise includes using image analysis and fluorescence microscopy to study concrete durability with a particular emphasis on the damage caused by deicing salts, alkali-silica reaction, and chemical attack in waste water treatment plants.


References
[1] Abrams, D., 1918, Design of Concrete Mixtures, Lewis Institute Structural Materials Research Laboratory Bulletin I, Chicago, IL.
[2] T.C. Powers, L.E. Copeland, H.M. Mann, Capillary continuity or discontinuity in cement pastes, The Research Bulletin of the Portland Cement Association 1 (2) (1959) 38–48 Bulletin 110
[3]  Thaulow N, Damgard-Jensen AD, Chatterji S, Christensen P, Gudmundsson H (1982) Estimation of the compressive strength of concrete samples by means of fluorescence microscopy. Nord Betong 26:2–4
[4] Concrete, Hardened: Water-Cement Ratio, NordTest Method NT Build 361, 1991 (2nd Edition, 1999)
[5] Weiss, W.J., Barrett, T.J., Qiao, C., and Todak, H., 2016, Toward a Specification for Transport Properties of Concrete Based on the Formation Factor of a Sealed Specimen, Advances in Civil Engineering Materials, vol. 5, no. 1; DOI: 10.1520/ACEM20160004
[6] Archie, G. E., 1942, “The Electrical Resistivity Log as an Aid in Determining Some Reservoir Characteristics,” Petrol. Technol., Vol. 146, No. 1, pp. 54–62.
