Working Equipment Concrete October 2009

Products and equipment for working with concrete.

1256223089241 10291657

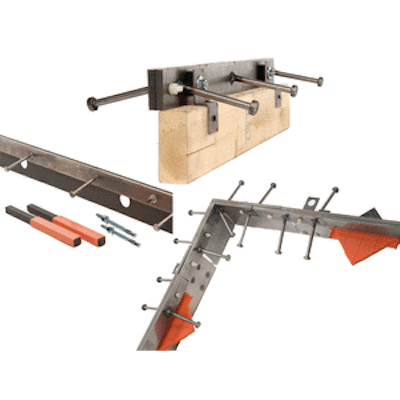

Armor-Edge Joint Assemblies


  • Edge protection systems for concrete flatwork in high-traffic areas, freezer buildings and when a jointless design is warranted
  • Ensures a smooth surface transition for forklift traffic
  • Reduces long-term floor and fork truck maintenance costs
  • Available for new construction, for installation in conjunction with a removable bulkhead or as a fully fabricated leave-in-place form and for transitions from new to existing slabs


PNA Construction Tech., Inc.

BP-50 Backpack Concrete Vibrator


  • Totally enclosed rotary throttle allowing operator to control engine while preventing wet concrete from entering and clogging throttle mechanism
  • Kill switch located on handle
  • Patent pending rotary throttle designed and engineered to eliminate operator's variable setting of engine speed ensuring unit will consistently produce proper vibrations per minute
  • Comes standard with Quick Disconnect "QD" system and Honda gasoline engines
  • Vibrator heads develop 12,000 vpm and never drop below 10,000 vpm even in heaviest low slump concrete loads
  • Handles heads up to 2 1/2 in.


Oztec Industries Inc.

Electric Flex Shaft Vibrators


These electric flex shaft vibrators feature an aluminum ribbed cast housing, heavy-duty vibration isolators and a double bar frame.

  • Protected air inlet prevents concrete clogging
  • 7/8- or 1 3/16-in. diameters
  • 2-, 5-, 7-, 10-, 14- or 21-ft. lengths
  • Interchangeable between Honda Back Pack and Electric Vibrator Head
  • Six sizes ranging from 3/4- to 2 3/8-in.


Minnich Mfg. Inc.

FR-800-C Rebar Bender/Cutter


The model FR-800-C will both cut and bend up to and including #8 (1-in. diameter) grade 60 rebar.

  • Self-contained hydraulic machine plugs into a standard 110-volt outlet
  • Combines a rotary bender with a heavy-duty shear
  • Cut bars to length and fabricate stirrups, hooks and 3-D bends on site or at the shop


Fascut Industries Inc.

Mixer Attachment


The hydraulic spiral mixer from Blastcrete is designed for plaster, mortar, snhotcrete and aggregate concrete mixtures. The mixer offers high speed blending, side discharge and is universal with any skid steer with 12 gpm. Features include a universal mounting plate, 4-ft. chute and manual hydraulic controls.

  • 9-cu.-ft. capacity


Blastcrete Equipment

Mobile Concrete Mixers


These mobile concrete mixers provide the ability to control your concrete needs by producing your own concrete.

  • Eliminate waste by producing only the concrete required when it's needed
  • Produce new concrete technologies including pervious concrete


Cemen Tech Inc

Portable Cement Mixer


  • Available in hydraulic or 110 VAC Electric models
  • 110 lbs., 40-in. tall
  • Shatter-proof plastic drum with drum rpm of 31
  • Flow requirement for the mixer is 5 to 8 gpm
  • Maximum pressure is 2,250 psi.
  • 225 lb. and 500 lb. capacities


Access Construction Equipment / Miniveyor USA

Quik Mix Pro Hopper Truck


  • Material hopper with chain belt discharge
  • Available in 5-, 6-, 8- and 10-cu. yd. capacities
  • 10-cu.-ft. capacity continuous mixer
  • 14-cu.-ft. capacity cement hopper with electric vibrator
  • 200-gal. capacity water tank
  • Swing-out style mudjacking pump carriage stows any HMI pump safely for transporting



Hydraulic Mudpumps

RB515 Rebar Tying Tool


The RB515 Rebar Tying Tool from Max USA is designed for tying large size rebar, from #5 x #5 up to #8 x #7 rebar. An adjustment dial allows you to select either three or four wraps per tie, and the tool cuts and twists in one second. The RB515 weighs only 5.2 lbs. and can reduce costs up to 1/5th of current budgets.


Max USA Corp

Rebar Benders and Cutters


  • Powered by 10,000 psi hydraulic pumps
  • Operate with a single hand
  • Bend or straighten rebar up to 135°
  • All models rotate 360°
  • Bending and cutting capacities of #6, 3/4" or #8, 1" 60-grade rebar


EZE Bend

Rebar Cutter Blades


Rebar Blades offers replacement cutting blades for all makes and models of rebar cutters. Blades are in stock and ready to ship the same day they are ordered. And if blades for your model are not currently available they can be made and then stocked for you.


Rebar Blades LLC

Stow Collomix


  • Line of 10 mixing systems for products ranging from grout, concrete and mortar to paint, epoxy dyes and more
  • Six single- or dual-speed handheld models in single- and dual-shaft configurations
  • Four hand-guided mixing stations with 2- to 3-cu.-ft. bucket capacities with a roller-mounted stand and a five-point base
  • Use forced-action mixing technology for effective mixing from bottom up, top down or parallel, depending on paddle model


Multiquip Inc.



The Wallbrator from LiteForm Technologies is an ICF wall vibrator that attaches to any 1/2-in. electric or cordless drill. Combining a high speed and low impact vibration, the wallbrator
insures good consolidation of concrete with one pass. Sizing in at just under 3 lbs. and a
length of 7 in., this tool is lighter weight and more compact than other traditional external
vibrators. The grip design offers installers a comfortable non-slip feel when operating under
any weather condition.


LiteForm Technologies

Water Chillers


Sioux's water chilling systems for concrete production allow concrete to be produced in hot weather. The chiller are air-cooled and available in several sizes that can be stationary or portable. Precise control of water temperature and volume of water create a continuous flow of cold water going into the mix.


Sioux Corporation
