Spotlight: Mixing October 2008

Choose a mixer appropriate to your material and job size.

1224686074048 10294670

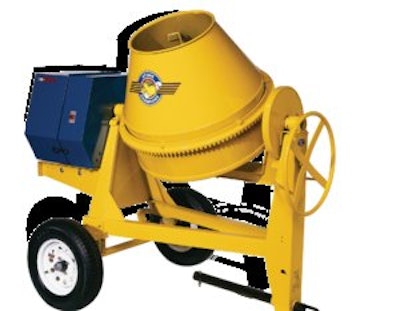

Champion Concrete Mixers


  • 12 models in standard side and end-dump versions
  • Engine options include Briggs & Stratton, Honda, Robin, electric and diesel
  • Two models of heavy-duty mortar mixers powered by a 13-hp Honda engine or a 5-hp electric motor in 1- and 3-phase configurations
  • Concrete mixer capacities: 2, 4, 6, 7, 9, 10 and 12 cu.ft.
  • Silo mixer capacities: 12 and 20 cu. ft.


Stone Construction Equip. Inc.

Concrete mixer scale


Vulcan On-Board Scales Mixer Scale for new McNeilus and Oshkosh mixers is the latest addition to the companys family of dump truck and other on-board weighing systems for spring, air or mixed suspensions. Designed for easy operation, the system measures remaining load. It operates stand alone or interfaces with on-board GPS/computer systems. It can also be retrofitted on existing vehicles.


Vulcan On-Board Scales

EZR 21 S Dual-Paddle Mixer


CS Unitecs EZR 21 S dual-paddle mixer is designed for heavy materials such as fiber-filled cements, epoxies, mortar, flooring compounds, granulates, ceramics, pastes and putties. Each paddle has a 4 3/4-in. diameter with a 8 1/4-in. working width. The welded steel and galvanized blades rotate in opposite directions, mixing the material from the bottom up. The EZR 21 S can handle up to 5 bags or 25 gallons of material.


CS Unitec, Inc.

Gilson Portable Wheelbarrow Mixer


  • Mix 3.5 cu. ft. of cement, or two bags of pre-mix concrete
  • High torque, 115 volt, 1/2 hp single-phase motor
  • Clears 30-in. door opening
  • Weighs 125 lbs.
  • Polyurethane drums will not crack or rust
  • Ring gear enclosed for safety


Cleform Tool Corp / Gilson Mixers

Ingersoll Rand CM Series Concrete Mixers


  • Reinforced steel frames and abrasion-resistant drums
  • Powered by Honda engines that are solidly mounted to the frame
  • Three models ranging from .5- to 1.5-bag capacities
  • Welded drums manufactured from high abrasion-resistant steel
  • Dumping mechanism comes with a multi-position drum lock
  • Two sets of laser-cut steel blades


Doosan Infracore Portable Power

Mixer Attachment


The hydraulic spiral mixer from Blastcrete is designed for plaster, mortar, snhotcrete and aggregate concrete mixtures. The mixer offers high speed blending, side discharge and is universal with any skid steer with 12 gpm. Features include a universal mounting plate, 4-ft. chute and manual hydraulic controls.

  • 9-cu.-ft. capacity


Blastcrete Equipment

Mobile Concrete Mixers


These mobile concrete mixers provide the ability to control your concrete needs by producing your own concrete.

  • Eliminate waste by producing only the concrete required when its needed
  • Produce new concrete technologies including pervious concrete


Cemen Tech Inc

Mortar Mixers


  • Six models with capacities from 6 cu. ft. to 12 cu. ft.
  • Two hydraulic models
  • Main shaft is made of a single piece of 1.63-in. hex steel
  • Blade arms are held to the main shaft with conforming plates and hardware
  • Cast iron trunnion and pillow block house a triple-seal protection system utilizing both rigid steel washers and flexible synthetic grease seals
  • Engine shroud made of heavy gauge steel


MBW Inc.

SS-585 Skid Steer Mixer


The SS-585 skid-steer mixer features all-welded steel drum construction with internal paddles to provide uniform mixing and clean dumping.

  • Suitable for mixing cement, feed, fertilizer, incoulating seed, potting soil and more
  • 5-cu.-ft. capacity
  • Features a hydraulic motor drive and flow control valve
  • Direct-mount, all-welded frame fits all skid steers with universal-style attachment systems


Worksaver Inc.

Stow Collomix


  • Line of 10 mixing systems for products ranging from grout, concrete and mortar to paint, epoxy dyes and more
  • Six single- or dual-speed handheld models in single- and dual-shaft configurations
  • Four hand-guided mixing stations with 2- to 3-cu.-ft. bucket capacities with a roller-mounted stand and a five-point base
  • Use forced-action mixing technology for effective mixing from bottom up, top down or parallel, depending on model


Multiquip Inc.
