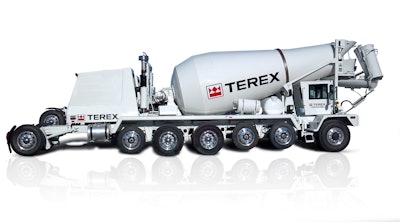

FDB7000 Front Discharge Mixer

With its 33.8-ft. front axle to tag axle span and 11-cu.-yd. drum, the FDB7000 front discharge mixer offers a true 10-cu.-yd. capacity while meeting the strict Federal Bridge Formula standard.

• Upgraded design allows the truck to take full advantage of the front axle’s inside cut for increased on-site maneuverability
• Two front axle options offer a choice of a 35° or 40° inside wheel cut to reduce curb-to-curb turning radius by up to 25%
• Wireless radio remote with pendant increases drum clean-up efficiency and simplifies below-grade concrete deliveries
• Drum shell constructed with AR400 steel and 0.25-in.-thick AR230 steel fins and flights
• Bolt-on trunnion rollers provide simple adjustment and servicing
• Air system features more than a 100-part-count reduction, resulting in fewer connections and less air leakage potential
• Certified pressure vessel, 120-psi wash-down system delivers faster and better clean-out of the drum
• Available with Cummins ISX-12 diesel, MTU Series 1300 diesel or Clean Cummins ISX-12G compressed natural gas engine options in ratings from 350 to 450 hp
