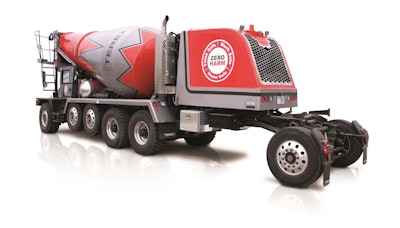

Terex FDB6000 Front Discharge Mixer Truck

Boasts a 206-in. wheelbase and 391-in. front axle to hydraulic tag axle span to meet Federal Bridge Formula standards

Terex FDB 6000 mixer truck Magazine 576856f44be6a
Terex 10835350

The FDB6000 front discharge mixer truck boasts a 206-in. wheelbase and 391-in. front axle to hydraulic tag axle span to meet Federal Bridge Formula standards.

  • Watson & Chalin 13k hydraulic tag axle controlled by a single lift axle control module (LACM)
  • Barrel paddles inside the rear of the 11-cu.-yd mixer drum minimize concrete clumping
  • Available Marmon-Herrington front axle offers a 42° wheel cut and a fully loaded turning radius of just 68 ft.
  • MTU Series 1300 (DD 13) diesel (450 hp/1,550 ft.-lb. torque), Cummins diesel and Clean Cummins CNG engine options
  • Allison six-speed automatic transmission with Smart-Control technology to improve shifting performance and increase fuel economy
  • 200-gal. aluminum water tank can be filled from the cab via the automated air/electric in-cab water-add valve
  • Simplified brake/air system includes few connections for less air leakage potential
  • Features include a 360° video camera that records and stores video from the truck’s perimeter, LED daytime running headlamps and work lights and a spacious cab with heated, adjustable seat and new instrument dashboard with logical gauge positioning
