Wirtgen SP 90i Paves 30 ft. Wide

Four-track SP 94i and two-track SP 92i focus German engineering with American features to deliver ride-bonus performance

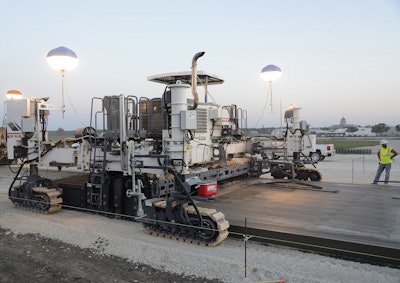

01 SP 94i JEFFERSON CITY AIRPORT 56b8e1dfb6a47
Wirtgen 578e77149c612

Wirtgen introduced its four-track SP 94i concrete paver to North America at World of Concrete 2015. The machine was configured to pave two lanes wide, or 26 ft. of its maximum 30-ft. paving width. The SP 90i Series also includes the two-track SP 92i. The SP 90i Eco Mode automatically matches engine output to work performance requirements, providing power on demand and reducing fuel consumption and noise.

  • Concrete can be spread by standard spreading plow or optional auger
  • Diagnostic system has a standardized interface for quick, targeted service
  • Optional dowel- and tie-bar inserters
  • Finishing beam, super smoother and many other options
  • Can be controlled with stringline or stringless by a variety of aftermarket systems
  • Modular inset mold permits paving with central crown from 6 to 30 ft. wide, with automatic crown adjustment
  • Edge slump is adjusted hydraulically
  • Up to 24 standard hydraulic or optional electric vibrators
  • The SP 90i series offers integral curb capability and zero-clearance paving
  • Both SP 92i  and SP 94i are powered by a Cummins QSL 9 diesel engine generating up to 310 hp
  • Depending on configuration, the SP 92i will weigh 65,000 to 100,000 lb., the SP 94i 65,000 to 145,000 lb.
