GOMACO to Introduce Intelligent Multi-application Paver at bauma 2016

New slipform paver features Smart Leg and Track Positioning and a Smart Telescoping Mold mounting system for paving from the right side or left side of the paver

GOMACO 3300 56e8668776922
GOMACO Swoosh 54c2cd8385045

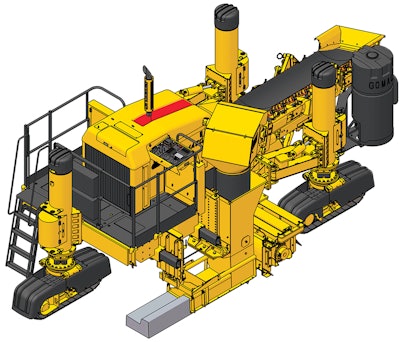

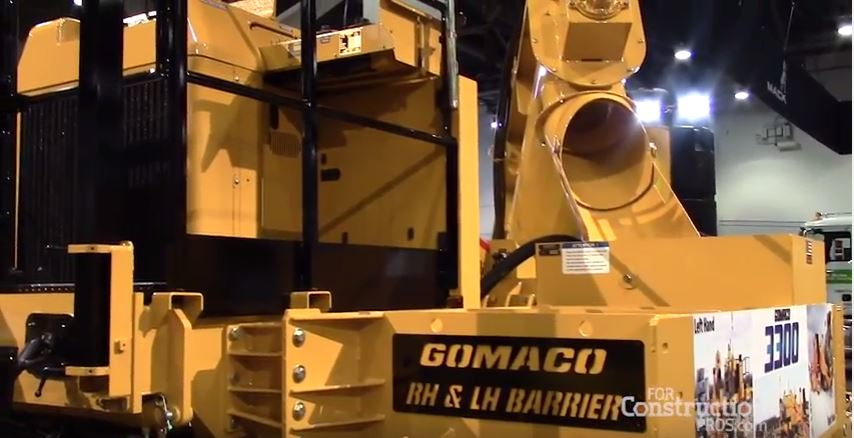

GOMACO will introduce its new 3300 multi-application slipform paver in stand FS.1210/3 at bauma 2016, which will take place April 11 to 17 in Munich, Germany. The 3300 features extreme steering capabilities with Smart Leg and Track Positioning, and a Smart Telescoping Mold mounting system for paving from the right side or left side of the paver. The original GT-3300 has been re-engineered with the latest in technology with the G+ control system.

The 3300 was specifically designed for right-side and left-side pour capabilities. It features a symmetrical design that makes it easy to pave from either side. Its U-shaped operator’s platform provides a complete view of the entire paving operation from anywhere on the platform. The control console easily slides from side-to-side to accommodate the direction of the pour. The unit's design includes a 20-ft. (6.1 m) long conveyor with four-way hydraulic positioning that allows optimal placement of the concrete into the hopper on either side of the paver. The four-way positioning includes pivoting tilt, pivoting swing, longitudinal slide and side shifting. The conveyor hydraulically folds to reduce the paver's overall transport length.

Extreme Steering is accomplished with hydraulic rotational drives on the tracks and G+ controls. The 3300’s two front legs are mounted on parallelogram-style pivot arms and the rear leg has power slide for positioning. Their smart leg positioning is accomplished with smart cylinders and the G+ digital control system along with Smart Track Rotation to provide the G+ control system with the exact location and position of the tracks and reference to their straight ahead line.

The Smart Telescoping Mold mounting system provides reference to G+ for repeatable mold offset. It has the Hook-and-Go mold mounting system to quickly and efficiently change from one mold profile to the next. The trimmerhead and mold side shift and vertically adjust to clear obstacles, allowing the 3300 to pave right up to obstacles.

The G+ control system easily interfaces with stringline or a 3D guidance system. The 3300 on display at Bauma will feature the latest in telematics and GOMACO Remote Diagnostics.

Video: GOMACO G+ Concrete Paver Control System

The GOMACO stand at bauma 2016 will also feature right-side and left-side pour barrier with the 4400 barrier paver. The all-new GP3, an intelligent concrete paver for slipforming widths up to 30 ft. (9.14 m), will make its international debut (Video: GOMACO GP3 Smart Paver). The four-track GHP-2800 slipform paver will be set up to pave a 7.5-meter (24.6 ft.) slab. The GT-3600 curb and gutter machine will be on display. A three-track Commander III will showcase its versatility set up to slipform a grooved slab. The “little” curb machine, the Curb Cadet, will round out the GOMACO’s Bauma display. Along with the paving equipment, the Smoothness Indicator (GSI) will be showcased as a tool for meeting rideability with on-the-go smoothness monitoring.
