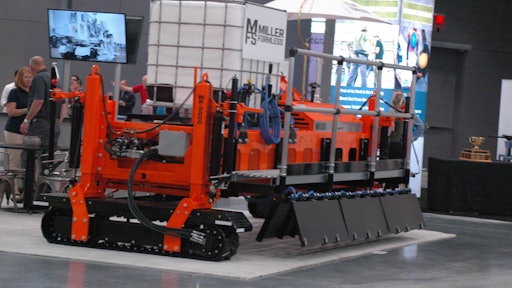

With the WB-3200 slipform paving machine work bridge, contractors can utilize fully functional texture/cure abilities. Its compact design allows working height as low as 18-in. from grade and the adaptive frame design allows for any attachments to be mounted on either side. The tethered electronic control console is mounted the same way as the operator seat, allowing the operator to be on the left or right side with a quick change feature. A quick selection in the control system allows for all controls to be reversed, with no electrical or hydraulic connections needing to be removed.
Dimensions
- Main Frame: 24 in. high, 48 in. wide with a 48-in telescoping frame slide
- Frame Extensions: 18 in. high, 42 in. wide
- Rubber Tracks: 75-in. long, 11.5-in. wide, Compact track motor/drive with four corner 18-in. stroke elevation cylinders
Features
- 25 hp Catepillar 1.1 Diesel
- Forward and Reverse Steering Sensors
- 4 Elevation Sensors
- Danfoss Pressure Compensated Pump
- Plus +1 Control System
- Onboard Diagnostics
- Minimum 12’ Paving Width
- Front or Rear Walkways (optional)
- Frame Extensions to 32’ (optional)
- Burlap Drag System (optional)
- Cure Spray System (optional)
- Longitudinal Tining Rack (optional)
- Transverse Tining Rack (optional)
- Custom Design Options Available (optional)
