ICF Products March 2007

There are many ICF systems to choose from. Select one that meets the needs of your project, whether it be above or below grade, residential or commercial.

1174405432559 10298784

There are many ICF systems to choose from. Select one that meets the needs of your project, whether it be above or below grade, residential or commercial.

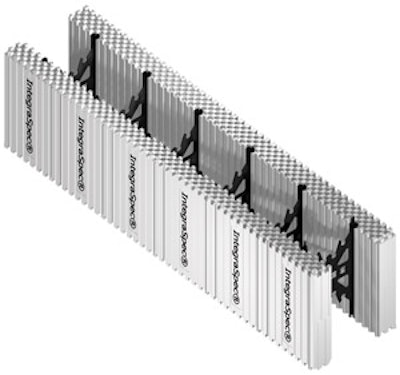

IntegraSpec System

  • Suited for commercial, industrial, institutional and residential construction
  • Patented interlocking system eliminates concrete blowouts
  • Now available with 5-in. web that, when combined with 2.5 in. of insulation on both sides, matches the standard 10-in. concrete masonry unit


Arxx ICF

  • Reinforced with steel rebar
  • Four-hour fire rating, far surpassing wood frame construction
  • Energy savings of up to 50 percent compared to traditional construction methods

Arxx Walls & Foundations

BuildBlock ICF

  • Fully assembled
  • Completely reversible
  • Convenient molded-in cut and measuring lines
  • Strong interlocking connections and high-density plastic web ties located 6 in. on center for extra strength during concrete pour


PS 3000 Waffle Grid Form

  • Uses 25 percent less concrete than flatwall ICF forms
  • 6- and 8-in. forms connect with 21/2-in. concrete webs; 10-in. forms connected with 31/2-in. webs
  • 45° and 90° corners
  • Recessed 11/2-in. studs

American PolySteel

Amvic ICF

  • Reversible FormLock interlock has 1-in.-deep grooves and eliminates the need for gluing or taping
  • 2.5 in. of 1.5lb./cf density EPS foam on each side of the form
  • Can withstand internal vibration
  • 6-in. on-center web placement

Amvic Building System

The Vertical ICF

  • ICF wall form designed for both above and below grade, residential and commercial
  • Unlike shape-molded block ICFs, poly panels are made completely separate from the plastic I-beams which allows for various wall thicknesses

TF System

Fox Blocks

  • 4-, 6- and 8-in. core widths
  • Variety of blocks available, including corners, angles and t-blocks
  • 25/8-in. EPS panel thickness
  • For residential and commercial, above and below grade work

Airlite Plastics Company


  • Preassembled with patented folding design for lower shipping costs
  • 2-in. EPS per side, continuous poly¬styrene
  • Build concrete walls 4 to 16 in. thick
  • ICF Expert (ICFX) training program available

Owens Corning

GBLOX Panel System

  • "Knockdown" field-assembled ICF system
  • Designed for use with Greenblock's fixed-web corners to ease corner assembly procedures
  • Available in 6-, 8- and 12-in. widths
  • Designed for above- and below-grade construction
  • Brickledge product also available

Greenblock, Inc.

Logix Pilaster ICF

  • Specialty form that allows pilasters in the ICF wall
  • Reduces cost of constructing high walls
  • Use with Logix's full line of residential and commercial ICFs


Xillix ICF

  • Designed to meet or exceed building code requirements
  • Available in two core widths: 9.25 and 11.25 in.
  • Quick stacking with fully reversible forms


Quad-Lock R-32 ICF System

  • Panels available in widths of 21/4 in. for interior and 41/4 in. for exterior; uneven insulation shifts thermal center closer to house for increased energy savings
  • No custom or special-order components
  • Best suited for energy-sensitive residential and light construction projects
  • No CFCs or HCFCs in mfg. process

Quad-Lock Building Systems Ltd.

FossilCrete Vertical Stamping System

  • Custom vertical texturing mix and line of tools and stamps designed specifically for vertical concrete stamping
  • Can be applied over ICFs, OSB/plywood, wire lathe or stucco mesh, cement block, etc.
  • Variety of stamps available, including Log Cabin, Bamboo, Great Wall of China, and several stone and brick options
  • Also can be used to create custom murals, boulders, bridges, trees and more


ICFVL Ledger Connector System

  • Engineered to solve the challenges of mounting wood or steel ledgers to ICF walls
  • Provides vertical and lateral, in-plane performance
  • Embedded legs of the ICFVL are embossed for additional stiffness
  • Concrete can flow through and around the connector

Simpson Strong-Tie

Handi-Stick Foam Adhesive

  • Pressurized polyurethane foam
  • construction adhesive

  • Won't degrade polystyrene
  • Designed for use with ICFs, architectural foam shapes and moldings, and foam boards
  • Airtight seal
  • One can contains 1,000 lineal ft. of adhesive bead

Fomo Products, Inc.


  • Water-based, polymer modified waterproofing membranes
  • Designed for use with ICFs
  • Highly flexible, seamless and fully bonded, environmentally friendly and ICC-approved
  • May be applied to a variety of surfaces, including green concrete and damp substates

Epro Service

Ultra Shield ICF

  • Water-based, polymer-modified coating designed for use below grade on ICF foundation walls
  • Engineered to meet or exceed the performance properties of the best polymeric waterproofing coatings
  • Excellent adhesion to foam forms

GMX, Inc.
