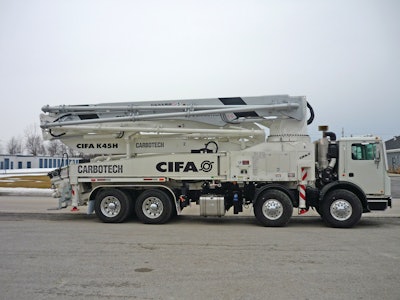

Carbon Fiber Concrete Boom - CIFA K45H

The CIFA K45H concrete pump truck's first three boom sections are fabricated from high-strength steel and the last two sections are fashioned from carbon fiber

Cifa Carbotech 45 Meter 11362647

Irving Equipment is offering a new model of the carbon fiber concrete boom, the CIFA K45H. The first three booms are fabricated from high-strength steel and the last two sections are made from carbon fiber.

  • 5-section R-Z style boom system with Valme 5-in. metric pipe along the entire length.
  • HPG 1408-IF9 has an output of 185 yards per hour (1,160 PSI) using 9-in. pistons and a 9-in. S-tube.
  • Cutting ring and wear plate are easily serviced from inside the hopper without moving the S-tube.
  • Comes standard with an HBC brand remote control system which includes a main and a back-up handset.
  •  Rear panel uses a touch pad covering so concrete, water and chemicals cannot penetrate the control box.
  • The K45H installed on a 4-axle chassis weighs about 73,000 lbs.
