StructureScan Mini GPR for Concrete Inspection

GSSI StructureScanMiniSeries 54de6d78c76ec
2017 Gssi Digital Logo

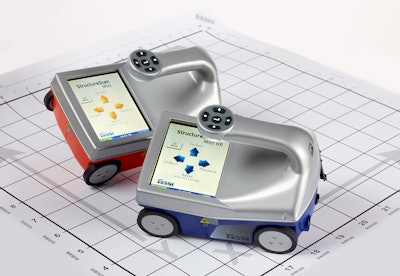

GSSI, announces its StructureScan Mini series, ideal for concrete inspection. The StructureScan Mini is a handheld, all-in-one ground ground penetrating radar (GPR) system for locating rebar, conduits, post-tension cables and voids, and can be used to determine concrete slab thickness in real-time. The StructureScan Mini is available in two models: the standard StructureScan Mini, and the StructureScan Mini HR, a high-resolution system.

• The StructureScan Mini is 1600 MHz and can reach depths of up to 20 inches (50 cm.)
• The StructureScan Mini HR offers a 2600 MHz antenna for high-resolution data and can reach depths of up to 16 inches (40 cm.)
• Safely locate metallic and non-metallic targets, with an auto target feature that marks the detection of features of interest
• Both models are available with either standard 2D capabilities, or 3D for an x-ray-like image
• Compact design makes concrete inspection easy in tight spaces or above the head survey locations, and its plastic casing and wheels ensure long-lasting performance
• Features an all-in-one concrete inspection tool, with the antenna, positioning system and control unit combined into one easy-to-maneuver package
• Lightweight and user-friendly
• No cables, no boxes, and no heavy equipment, allowing users to move seamlessly between job sites
• Aids in target detection with advanced software solutions, which visualize targets as a small dot when characteristics of rebar or conduit are identified
• Two-year warranty
