Minnich Concrete Barrier Special Application Drill

Drill custom designed to ride along the top of the barrier wall and drill three holes simultaneously

Minnich Concrete Barrier Special Application 5669e730daec5
Minnich 10950440

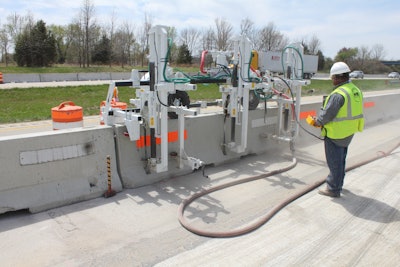

Minnich Manufacturing, a manufacturer of concrete dowel pin drills, concrete paving vibrators and vibrator monitoring systems, introduces a concrete barrier wall drill. The powerful new drill helps contractors maximize the efficiency and safety of drilling vertical holes for the pins used to secure temporary concrete traffic barriers. Air-driven and self-propelled, the Minnich concrete barrier wall drill straddles and rides along the top of the temporary wall. A tethered controller enables the operator to simultaneously drill three accurate, consistent pin holes — through pre-molded holes in the wall, through the road, into the sub-base — while positioned on the non-traffic side of the barrier.

  • Tethered controller removes the operator from excess debris and dust
  • Can be customized to fit F-shape barriers, Jersey barriers or any other barrier wall profile
  • The drill spacing and hole depth are fully adjustable
  • The unit can be easily moved with a forklift and loaded onto the wall with a backhoe or service crane

Barriers Prove No Obstacle for Drilling
