Milwaukee MX FUEL Vibratory Screed

Battery-powered screed delivers the power to pull a 16-ft. bar while eliminating gas headaches.

Milwaukee MX FUEL Vibratory Screed
Milwaukee Tool Corp.
Milwaukee Logo

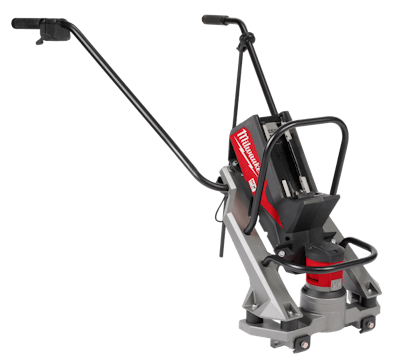

Part of the MX FUEL Equipment System, the Milwaukee MX FUEL Vibratory Screed is critical to the concrete leveling process, ensuring the slab is flat and meets grade. Delivering the power to pull a 16-ft. bar, eliminating gas headaches, and offering two hours of run-time per charge with a 12-ft. bar**, the vibratory screed reduces user frustrations while meeting power requirements and exceeding runtime needs.Milwaukee MX FUEL Vibratory ScreedMilwaukee Tool Corp.

Specifications

  • Battery Type: Lithium-Ion
  • Battery System: MX FUEL
  • Bar Capacity: 4-16 ft.
  • Vibrations Per Minute (VPM): 4,000-9,000
  • Weight:37 lbs.
  • Equipment Warranty: 2 Year
  • Battery Warranty: 2 Year
  • ONE-KEY Compatible: Track and Manage
  • Push Button Start: Yes
  • Variable Speed Trigger: Yes
  • Kit: (1) MX FUEL Vibratory Screed (MXF381-2CP), (2) MX FUEL REDLITHIUM CP203 Battery Packs (MXFCP203), and (1) MX FUEL Charger (MXFC).

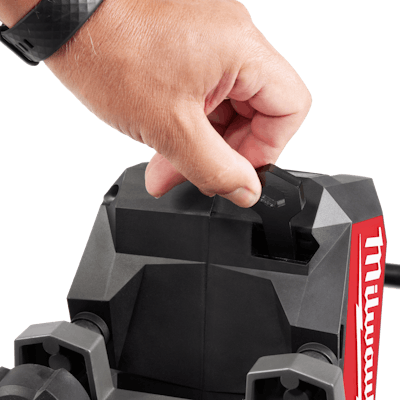

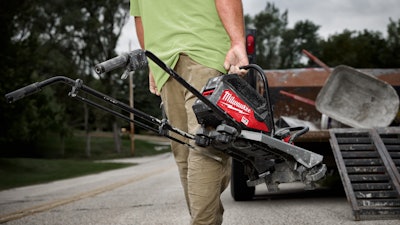

Milwaukee MX FUEL Vibratory ScreedThe integrated ergonomic carry handle makes it easy for transporting and positioning.Milwaukee Tool Corp.

Milwaukee MX FUEL Vibratory ScreedThe variable speed trigger provides control for wet and stiff concrete.Milwaukee Tool Corp.“Coming off the success of the MX FUEL Backpack Concrete Vibrator, we knew the next step was to provide a concrete leveling solution that took on the frustrations and problems of a gas-powered screed. By utilizing our MX FUEL technology we can deliver a vibratory screed that is more reliable than gas while still delivering the performance and power our users demand,” said Kevin Gee, Director of Product Management for Milwaukee Tool. "The MX FUEL Vibratory Screed is the next step in our push to offer general contractors and concrete contractors a full line of concrete finishing equipment solutions.”

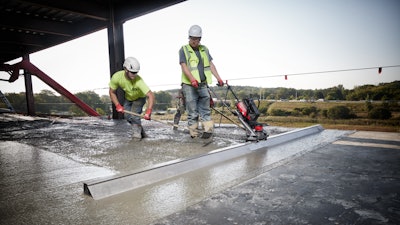

Milwaukee MX FUEL Vibratory ScreedThe on-board tool storage includes a 9/16-in. wrench for quick bar change.Milwaukee Tool Corp.With the power to pull up to 16-ft. bars and consolidate up to six inches of concrete without sacrificing power, users have maximum control in both stiff and wet concrete. The push-button start provides instant power with no gas headaches and eliminates the repetitive motions of a pull start, reducing downtime. The battery-powered screed requires no regular maintenance, eliminates the need to mix gas and oil, produces less noise and vibration, and has zero emissions–making the workplace safer whether indoors or outdoors.

When paired with a 12-ft. bar and one MX FUEL REDLITHIUM CP203 Battery Pack, the MX FUEL Vibratory Screed delivers up to two hours of runtime per charge, or up to 10,000 sq. ft. The screed can also run two motors on one bar for increased mobility if using a longer bar.

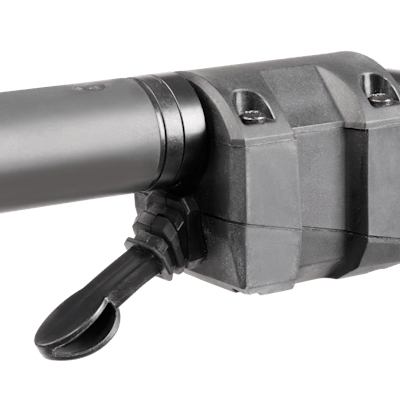

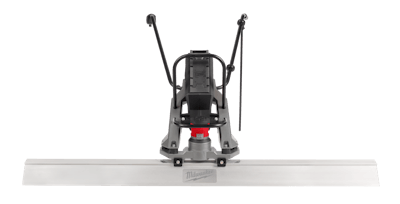

Milwaukee MX FUEL Vibratory ScreedThe adjustable handlebars can be easily adjusted for height. The quick attachment clamp-on bar design does not require holes or hardware through bars. Compatible with Milwaukee and MBW bars.Milwaukee Tool Corp.Seven screed bars are available separately, ranging from 4-16-ft. in length. Constructed from lightweight magnesium, the extra-rigid, double triangle design transmits consistent vibrations across the entire length of the bar. Utilizing a clamp design, Milwaukee’s Screed Bar allows users to quickly attach the bar at any point on the machine.

As an added benefit, users can track, manage, and secure the screed from their mobile device through ONE-KEY, a Bluetooth community tracking network allowing concrete contractors to prevent tampering with a remote lockout capability.

Dedicated to the concrete contractor and delivering innovative solutions, Milwaukee continues to revolutionize the light equipment market without the hazards associated with emissions, noise, vibration, and gas maintenance.

The Milwaukee MX FUEL Vibratory Screed is expected to launch in early 2022.


**At partial throttle
