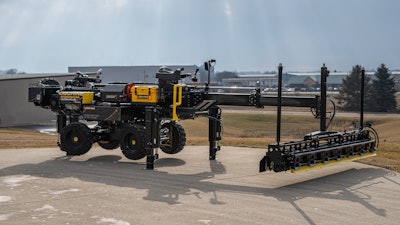

Born with a long reach and a wide pass, the Ligchine SCREEDSAVER ULTRA PLUS was built to screed more and screed faster. Complete with an ultra heavy-duty boom reaching 20 ft. with an all-new Ultra Performance 14 ft. 6 in. screed head. Powering the ULTRA PLUS is a 45-horsepower Kubota turbocharged diesel engine. For increased maneuverability and traction, the ULTRA PLUS includes selectable four-wheel drive with a 2-speed drive range and four-wheel independent steering.
The ULTRA PLUS features a high-tech elevated operator’s platform, including a captain’s seat, twin joystick controls, and a 7 in. touchscreen control panel– which also serves as a display for the industry-first SCREEDVIEW camera system. On board, contractors will find a built-in pressure washer for clean-up, two locking toolboxes, and two high-capacity water tanks.

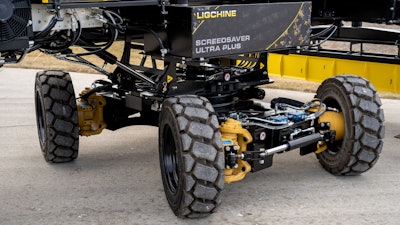

The Ligchine SCREEDSAVER ULTRA PLUS features a selectable 4-wheel drive, with 2-speed drive range, and four wheel independent steering.Ligchine
Key Features
- A 14’6” Ultra Performance screed head
- A 12’6” finishing pass
- Swingboom pivoting frame technology
- Four camera SCREEDVIEW system
- Ligchine Gen 2 Wireless control
- On-board pressure washer

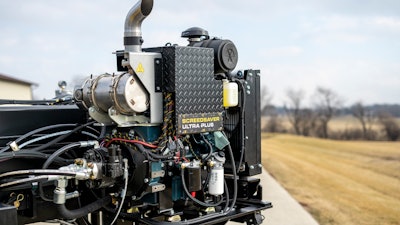

A Kubota V1505, 4-cylinder, turbarcharged diesel engine will keep contractors working.Ligchine
| Engine Size | Kubota V1505, 4-cylinder / 3,000 rpm, Turbo-Diesel |
| Machine Size (retracted) | 8 ft. 4 in. W by 18 ft. 8 in. Long by 7 ft. 2 in. |
| Machine Weight | TBD |
| Steering System (hydraulic) | 4-wheel independent steering |
| Drive System (hydraulic) | Selectable 4 wheel, with 2-speed drive range |
| Parallel to the Pour Driving Capable | Yes – 360 degree drive frames (zero turn capable) |
| Lighting System | 2 forward and 2 rear LED light pods |
| Machine Operation Control | Operator’s Platform with Twin Joystick control or 100% Wireless Remote Control |
| Coverage per screed pass (no overlap) | 240 sq. ft. |
| Swingboom range of motion | 12 degrees total motion: 6 degrees left and right |
| Boom Reach | 20 ft. |
| Self-contained Concrete Additive Sprayer System | Standard |
| Diagnostics (hydraulic, electrical, engine and laser) | Dual Parker MD4, 7” touch-screen color display |
| Machine Length When in Trailer Mode | 26 ft. 9 in. |
| Grade/Slope/Dual Slope control (standard) | Topcon LS-B110 |
| Contoured Slope 3D Capable (optional) | Topcon 3D mmGPS Satellite control or LPS Robotic |
*pre-production model shown, specifications subject to change
