New Tomography Software for Cross Hole Sonic Logging: PDI-Tomo

Crosshole Sonic Logging evaluates the integrity of the concrete of drilled shafts and other bored or cast-in-place deep foundations.

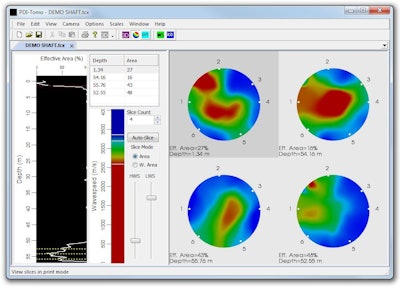

slice view grey 572775fa2959c

Pile Dynamics has released the new PDI-Tomo software for analysis of Crosshole Sonic Logging (CSL) data. The program replaces an older tomography program, with significant advantages. Crosshole Sonic Logging evaluates the integrity of the concrete of drilled shafts and other bored or cast-in-place deep foundations. Ultrasonic transmitters and receivers are inserted in the foundation and an instrument such as the Pile Dynamics’ brand CHAMP-XV collects the data. Its software CHA-W analyses the propagation of the waves emitted by the transmitters, indicating potential concrete problems.

  • Allows a better estimate of the extent of irregularities or defects.
  • Combines arrival time data from the scans of all pairs of tubes, analyses the data and displays it in various views.
  • Designed for fast data processing, improving the productivity of CHAMP-XV users.
  • Program functions are intuitive and many features are automatic (for example, PDI-Tomo find the depths where data suggests that a detailed investigation of integrity may be warranted).
  • PDI-Tomo output is highly customizable to fit the needs of each user.
