Oztec Electric Motors

All Oztec Power Units run vibrator heads 11,000 to 12,000 rpm.

Oztec Electric Motors
Oztec Electric motors are manufactured to exacting specifications to withstand the rough day to day abuses associated with construction sites.
Oztec
Oztec Logo

Oztec electric motors are manufactured to exacting specifications to withstand the rough day-to-day abuses associated with construction sites. Lightweight, compact and fitted with the company's comfortable adjustable shoulder strap, this one-man power unit will speed through the stiffest concrete.

Use the Oztec Vibrator Selection Chart to combine power units with any of Oztec's steel or rubber vibrator heads for maximum productivity.

All Oztec vibrators meet or exceed ACI specification # 309.

All Oztec power units come standard with the Quick Disconnect “QD” system. Changing shafts and heads on the job is a snap. Oztec units meet all United States OSHA and Canadian safety standards.

Specifications by Model

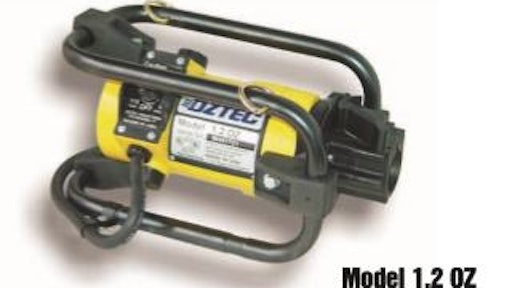

1.2 oz

  • Weight: 12 lbs.
  • Vibrations 12,000 VPM
  • Power: 9 Amps (1 1/4 hp)
  • Flexible Shaft Length: 2 to 21 ft.
  • Flexible Shaft Weight: 2 to 21 lbs.
  • Head Diameter: 3/4 in. to 2 3/4 in.
  • Head Configuration: Round or RubberHead®

1.8 oz

  • Weight: 16 lbs.
  • Vibrations 12,000 VPM
  • Power: 15 Amps (1 3/4 hp)
  • Flexible Shaft Length: 2 to 21 ft.
  • Flexible Shaft Weight: 2 to 21 lbs.
  • Head Diameter: 3/4 in. to 2 3/4 in.
  • Head Configuration: Round or RubberHead®

2.4 oz

  • Weight: 17 lbs.
  • Vibrations 12,000 VPM
  • Power: 17 Amps (2 1/4 hp)
  • Flexible Shaft Length: 2 to 21 ft.
  • Flexible Shaft Weight: 2 to 21 lbs.
  • Head Diameter: 3/4 in. to 2 3/4 in.
  • Head Configuration: Round or RubberHead®

3.2 oz

  • Weight: 22 lbs.
  • Vibrations 12,000 VPM
  • Power: 19 Amps (3 1/4 hp)
  • Flexible Shaft Length: 2 to 21 ft.
  • Flexible Shaft Weight: 2 to 21 lbs.
  • Head Diameter: 3/4 in. to 2 3/4 in.
  • Head Configuration: Round or RubberHead®
