3D-Printed Concrete Used in Offshore Wind Energy Infrastructure

Wind off the coasts of the U.S. could be used to generate more than double the combined electricity capacity of all the nation’s electric power plants, reports have suggested.

Madison Sanneman/Purdue University

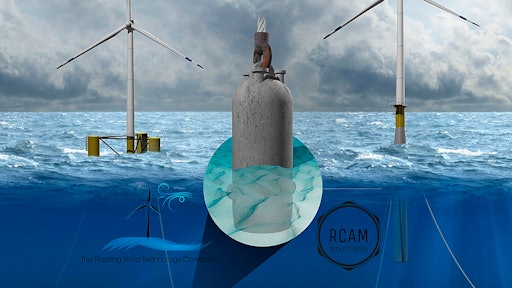

Illustration of a 3D-printed concrete suction pile anchor for connecting floating wind turbines to the seabed via mooring lines.
Illustration of a 3D-printed concrete suction pile anchor for connecting floating wind turbines to the seabed via mooring lines.
RCAM Technologies

Purdue University recently published a research article about the use of 3D-printed concrete in offshore wind turbines:

Wind off the coasts of the U.S. could be used to generate more than double the combined electricity capacity of all the nation’s electric power plants, reports have suggested.

But building wind turbines offshore is expensive, requiring parts to be shipped at least 30 miles away from a coast.

Purdue University engineers are conducting research on a way to make these parts out of 3D-printed concrete, a less expensive material that would also allow parts to float to a site from an onshore plant.

“One of the current materials used to manufacture anchors for floating wind turbines is steel,” said Pablo Zavattieri, a professor in Purdue’s Lyles School of Civil Engineering. “However, finished steel structures are much more expensive than concrete.”

Conventional concrete manufacturing methods also require a mold to shape the concrete into the desired structure, which adds to costs and limits design possibilities. 3D-printing would eliminate the expenses of this mold.

The researchers are working in collaboration with RCAM Technologies, a startup founded to develop concrete additive manufacturing for onshore and offshore wind energy technology, and the Floating Wind Technology Company (FWTC). RCAM Technologies and the FWTC have an interest in building 3D-printed concrete structures including wind turbine towers and anchors.

“Purdue’s world-class capabilities and facilities will help us develop these products for offshore products for the U.S. Great Lakes, coastal and international markets,” says Jason Cotrell, CEO of RCAM Technologies. “Our industry also needs universities such as Purdue to provide the top-quality university students for our workforce needs for these cutting-edge technologies.”

The work also is funded by the National Science Foundation INTERN program.

The team is developing a method that would involve integrating a robot arm with a concrete pump to fabricate wind turbine substructures and anchors.

This project is a continuation of the team’s research on 3D-printing cement-based materials into bioinspired designs, such as ones that use structures mimicking the ability of an arthropod shell to withstand pressure.

The group’s current research involves scaling up their 3D printing by formulating a special concrete – using a mixture of cement, sand and aggregates, and chemical admixtures to control shape stability when concrete is still in a fresh state.

“Offshore wind power is a nearly perfect platform for testing 3D printing,” said Jeffrey Youngblood, a Purdue professor of materials engineering.

The goal is to understand the feasibility and structural behavior of 3D-printed concrete produced on a larger scale than what the team has previously studied in the lab.
