Laser Scanning Software Innovates Contractor's Construction Workflows

Pointfuse enables Howard Shockey and Sons to create manageable models that automatically classify building features and aid in clash detection and other construction processes.

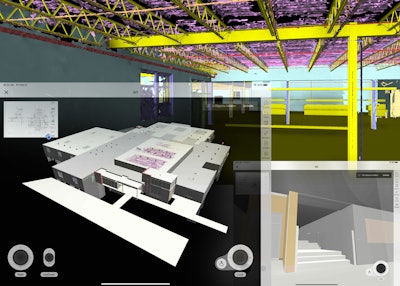

Pointfuse Shockey Capture 1

With over 120 years of industry experience, Howard Shockey and Sons, Inc. is one of Virginia’s oldest and largest construction companies. Offering a complete range of services including preconstruction, general contracting, construction management, design-build and integrated project delivery, Shockey has completed high-profile projects in the academic, healthcare, senior living, commercial, and industrial markets.

Technology plays a significant role on its projects. “Laser scanning is increasingly being used on construction projects to capture detailed and accurate records during the different build stages,” notes Charles Goin, VDC Manager at Shockey. “However, the resulting point clouds are huge, unwieldy, raster files that are hard to use and require specialized BIM and VDC software to utilize.”

The contractor elected to integrate Pointfuse laser scanning software into its scanning and VDC workflows. Used to convert vast point clouds generated by laser scanners and photogrammetry, Pointfuse creates manageable, intelligent mesh models that automatically classify building features, aid in clash detection and other construction processes – all in small, portable files that can be up to 100 times smaller than the original point cloud. This level of product integration provides for a seamless union of technologies, resulting in considerable project cost savings.

Development of More Manageable and Usable Data

Shockey initially used Pointfuse on a $13.7 million adaptive reuse project in Virginia, which will result in the creation of a 46,400-sq.-ft. career and innovation center. Following demolition work and the removal of suspended ceilings, the project was scanned in just two hours using a Leica BLK360 laser scanner. The result was a 9GB file composed of 900 million measurements and 19 3D panoramic HDR images.

“Using Pointfuse, we converted the point cloud into a vector cloud-based model and were able to classify major existing systems such as structural and MEP. This process not only improved the usability of the data, but it also reduced the cloud size to under 80MB from 9GB, a factor of over 100," says Goin. "We then combined the as-built Pointfuse model with the design model to run clash detection and improve coordination with the other subcontractors."

Comparison of the new model with the original Revit model highlighted areas where the as-builts deviated from the design. This allowed  the Shockey team to immediately identify additional structural concrete forms and changes in the size and spacing of the joists (which impacted architectural treatments and finishes), along with other services such as HVAC, MEP, and fire safety.

Easy Information Access

Following this discovery, Shockey shared the new model with the designers and subcontractors who were already using 3D models for coordination and informed the mechanical contractor (as changes to the planned HVAC system would be required). This discovery also allowed for the modification and integration of the existing sprinkler mains into the new fire safety system to save costs.

“The most exciting result from creating the vector cloud using Pointfuse was the ability to democratize the scan data," Goin comments. "We were able to upload the model into our cloud-based construction management software Procore, and its VDC Model module, thereby allowing everyone on the team from the architect to field superintendent to view the scan data simply via an App on an iPad or iPhone."
