The new TLL-300 Triple Line Lifters from LineWise are designed to support up to three phases during distribution work below 34.5 kV. With models available for bucket trucks, cranes and digger derricks, the TLL-300 can be used during pole change-outs and other maintenance tasks.

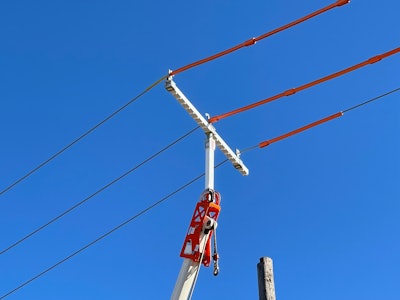

The TLL-300 features a fiberglass mast and crossarm with three adjustable wire holders. The wire holders can be moved along the crossarm in 3-in. increments without the use of tools to align with various phase spacings. The wire holders include gravity gates for capture and release of phases with wear pads to support the crossarm. For versatility, the crossarm can rotate 15 degrees each direction, both inline and perpendicular to the boom.
Model TLL-300B is designed to mount on the material handling jib of a bucket truck. Maximum spacing between the outside phases is 7-ft., 6-in. (2,286 mm), and minimum spacing is 1-ft., 7-in. (483 mm). Model TLL-300D can be mounted on digger derricks and cranes. It has a maximum outside phase spacing of 9-ft., 4-in. (2,845 mm) and a minimum spacing of 1-ft., 6-in. (457 mm). Two linemen can set up the products in approximately 10 minutes with no tools required.
Both models feature a load capacity of 300-lbs. (136 kg) per phase or 900-lbs. (408 kg) total. Side load capacity is 100-lbs. (45 kg) per phase or 300-lbs. (136 kg) total. The TLL-300D can be configured for both horizontally and vertically oriented phases, while the TLL-300B is only compatible with horizontal construction.
