Kinshofer DXS-50 Hydraulic Mobile Shears

DemaPower cylinder technology uses four chambers instead of two, enabling a smaller attachment to deliver a closing force of 1,203 tons

Kinshofer Dxs50 2
Kinshofer Logo 10948460

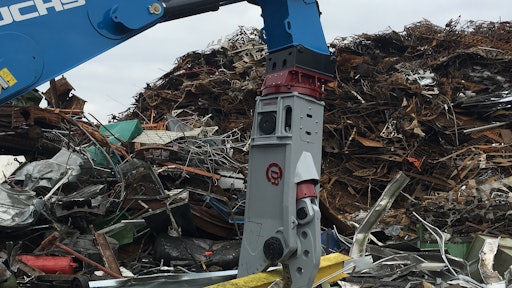

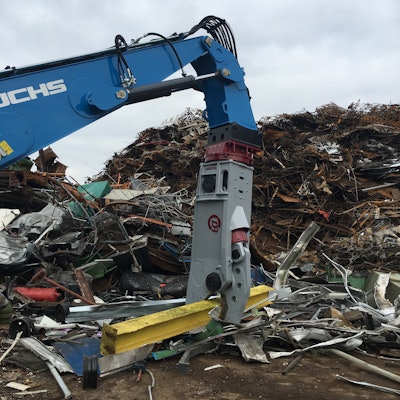

The 9,920-lb. DXS-50 hydraulic mobile excavator shears features DemaPower cylinder technology. The cylinder uses four chambers instead of two, enabling a smaller attachment to deliver a closing force of 1,203 tons.

  • Suited for 25- to 35-ton carriers when boom mounted and 32- to 50-ton carriers when stick mounted
  • Jaw opening of 29.2 in. wide and 30.7 in. deep
  • Functions normally when the carrier is set in economy mode
  • Narrow frame provides improved visibility to the work area
  • Double-acting speed valves and cylinder technology enable fast jaw closing and opening speeds with cycle times as fast as 5.5 seconds
  • Rotation-equipped models feature 360° continuous rotation on an oversized slewing ring and include heavy-duty motors for maximum rotation torque
  • Convenient service openings for fast access to shear hoses and hydraulics
  • Piercing tip can be welded again and replaced
