Case Precision Grader Blade for Large-frame Compact Track Loaders

Compatible with 2D and 3D machine control technologies, the attachment allows a CTL to be transformed into a powerful and compact precision grading solution.

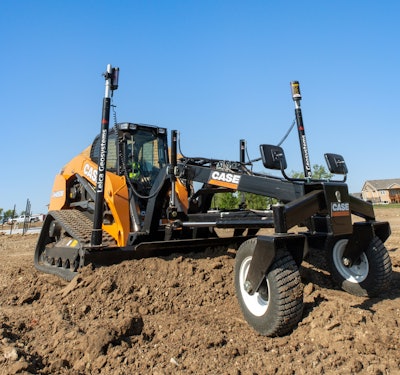

Case Precision Grader Blade Ii 587685

This Precision Grader Blade for large-frame compact track loaders (CTL) is compatible with the use of laser receivers (single or dual), sonic tracers (single or dual), GNSS/GPS (single or dual) and total stations.

  • “Plug and play” attachment design with auxiliary hydraulics and 14-pin electrical connection of a large-frame CTL
  • 108-in. moldboard capable of jointly changing elevation and slope through dual lift cylinders and achieving 60° of combined blade rotation and 26 in. of combined blade side shift
  • Motion and action controlled through the existing joysticks of the CTL with no additional controls required
  • Provides 97 in. of grading width even at full rotation
  • Built for minimal maintenance with powder-coated metal surfaces, composite greaseless bushings at the pivot points, and heavy-duty axles with sealed hubs
  • Standard bolt-on reversible cutting edge
  • Options include bolt-on side plates for material containment and twin mirrors for greater visibility down to the moldboard
