M-Series Screener Crushers

Typcical bucket of coal, oil shale, limestone, dolomite, gypsum, phosphate, salt or other soft rock can be crushed and screened in less than 60 seconds, processing up to 650 tph

Allu M Series 3 3 11291771

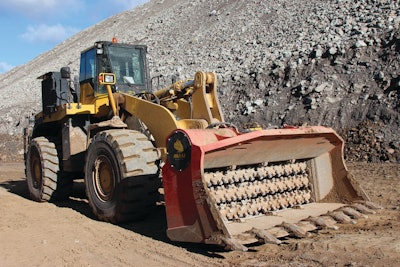

The Mining Series (M-Series) all-in-one screener crusher attachment uses a one-step process to crush, screen, mix and load a variety of mined materials, including coal, oil shale, limestone, dolomite, gypsum, phosphate, salt and other soft rock.

  • Typical bucket of material can be crushed and processed in less than 60 seconds for up to a 650-tph processing capacity
  • Four models produce three to four different fragment sizes and fit wheel loaders from 50 to 140 metric tons and excavators from 60 to 250 metric tons
  • Hydraulically-operated hinged mount plate allows use as a loading bucket with normal load-and-carry characteristics, including maximum breakout force
  • Rear-mounted drum and bearing design uses three rotating crushing drums powered by a hydraulic motor
  • Installation includes a wired control panel located inside the operator’s cab of the carrier machine to monitor key data
  • Designed with changeable wear parts
  • CONEXPO-CON/AGG Booth #2109 Gold Lot
