Masterpac PC Series Forward Plate Compactors

Masterpac’s PC Series forward plate compactors are ideal for all general applications – curbs, gutters, around tanks, forms, columns, footings, landscaping, paving blocks, drainage ditches and light to medium road repair work. The PC Series offers a 12-in. plate (PC3008), a 14-in. plate (PC3610), a 16-in. plate (PC4012) while the PC4515, PC5018 and PC5021 come in 20-in. plate widths. Cast-iron plates are available in the PC3008, PC3610, PC4012 and PC4515 models.

• 5.5 hp Honda GX100 and GX160 engines provide high centrifugal force and travel speed
• Foldable handle for easy transportation and storage
• Sealed belt cover for clutch and belt protection
• Removable anti-vibration handle for operator comfort and ease of transportation
• Optional transport wheel provides easy movement around sites

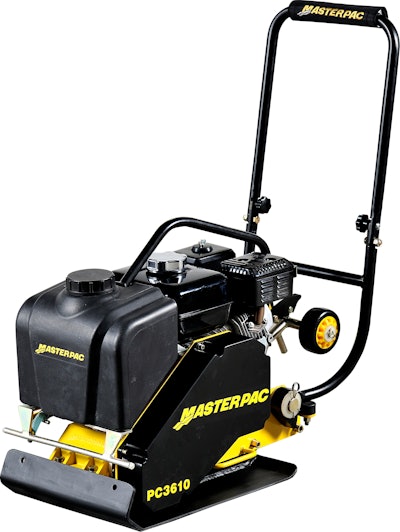

• Optional water tank and sprinkle system for asphalt use
• Optional polyurethane pad for paving applications
• Sturdy protected throttle lever
• Cast iron lubricated wear resistant vibrator assembly
• Solid engine frame with lifting eye protects engine against dirt and damage and for easy transportation
• Self-cleaning open base plate
