BOMAG BVP 10/30 Single Direction Plate Compactor

Weighing just over 100 lb. (46 kg), the new BOMAG BVP 10/30 compactor is the lightest single direction vibratory plate in its class and features a balanced lifting point, so it can be quickly loaded and unloaded from the transport vehicle.

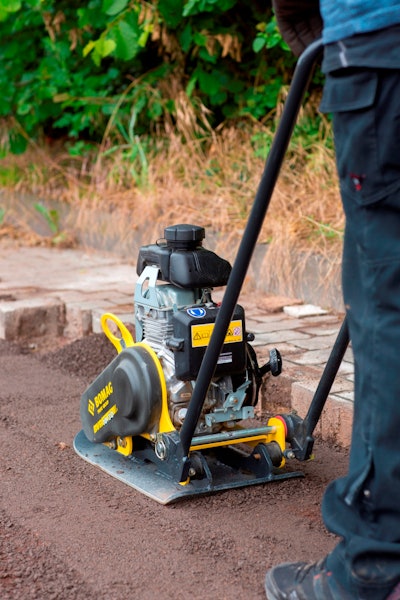

Bomag Bvp 10 30 V1 Field Photo Email
Bomag Logo 180x66

BOMAG single direction vibratory plate compactors are a contractor’s indispensable tools for day-to-day use in soil and asphalt repair and maintenance compaction applications. Weighing just over 100 lb. (46 kg), the new BOMAG BVP 10/30 compactor is the lightest single direction vibratory plate in its class and features a balanced lifting point, so it can be quickly loaded and unloaded from the transport vehicle without any support equipment.

  • This flexible walk-behind compactor boasts a compact design with its 11.8- by 20-in (300- by 508-mm) plate width and length, making it perfect for compacting confined spaces and into corners.
  • The productive machine generates 2,250 lb (10 kN) centrifugal force at working speeds reaching 82 ft/min (25 m/min).
  • Rubber buffer mounting of the 2.8-hp (2.1-kW) Honda gas engine minimizes damaging vibration feedback to the engine to maximize service life, while the low oil alert feature automatically turns off the engine before major component damage can occur.
  • The BVP 10/30 features a maintenance free exciter to reduce service time.
  • The machine’s enclosed V-belt guard keeps material from entering the chamber for a longer service life with fewer repairs.
  • Its hinged handle features rubber mounts to effectively minimize vibration transmitted back to the operator’s hands and arms for more comfortable operation.
  • The V-belt guard fully encloses the belt’s movement to protect the operator from injury.
  • Compactor lifting handles help to advance safe loading and unloading from the transport vehicle.
