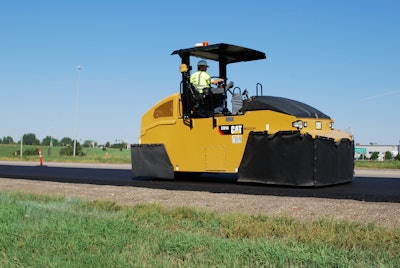

The CW16 is designed for efficient performance on highways, city streets, county roads, lane additions, industrial sites, overlays, or other mid-size jobs.
- Designed for use on granular materials and all types of asphalt-mix designs, the Cat CW16 pneumatic roller is available as a standard nine-wheel model with a 69-in. compaction width or as an optional 11-wheel model with an 84-in. compaction width
- Depending on ballast used (including water, sand, steel, or combinations), operating weight of the CW16 varies from an 11,464-lb. base configuration to an approximate maximum weight of 33,000-lb. for the nine-wheel configuration and 32,850-lb. for the 11-wheel configuration. Operating weight can be adjusted to suit job requirements
- Oscillating front wheels assist in compacting soft voids across the entire machine width and the 11-wheel configuration increases efficiency in chip-and-seal applications
- A tire overlap of 1.25-in. ensures even compaction across the surface
- Each wheel is equipped with self-adjusting scrapers and a water-spray system deters material from adhering to the wheel surface
- Standard cocoa mats help retain water to keep wheels wet and heat-retention aprons are available
