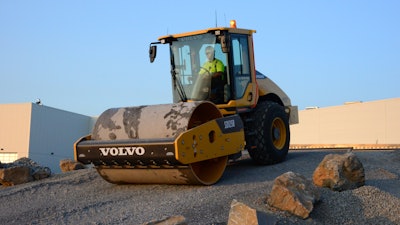

Volvo CE Launches SD125 Soil Compactor

Volvo Construction Equipment is broadening its compaction range in North America with a new model targeting medium- to heavy-duty compaction jobs. The new SD125 soil compactor is designed for both rental houses and highway contractors.

The 12-ton machine becomes the largest model in the Volvo soil compaction portfolio with an 84-in. smooth-drum and operating weight of 26,565 lbs. (12,050 kg). Its specs are similar to the existing SD115 but with a 0.2-in. (5 mm) thicker drum shell and a heavier outer eccentric weight. This results in an additional 935 lbs. (424 kg) of mass on the drum, increasing the static load and eccentric force for a different amplitude profile.

"The SD125 is a direct response to dealers and customers who have asked for a machine that combines the quality and performance of the SD115 with the heavier weight of a 12-ton machine,” said Justin Zupanc, compaction product manager. “We take feedback seriously, and I think this model shows that.”

Performance

As terrain and material depths change, the ability to adjust dynamic drum forces is as simple as the flip of a switch on the new SD125. Another switch adjusts the two drum frequencies to compensate for changing conditions. A five-frequency feature is available as an option for versatility and performance.

The center joint provides +/-35 degrees of articulation and +/-12 degrees of drum oscillation for stable and flexible performance over rough terrain. Because the drum is in constant contact with the ground, compaction is smooth and uniform.

The additional static weight on the drum frame facilitates the ability to negotiate 35% slopes for gradeability. The angled frame allows high clearance in the approach to steep slopes and while loading, eliminating the possibility of damaging the surface or the machine.

A heavy-duty axle is integrated into the drivetrain for a rear-wheel drive system. The No-Spin differential increases traction, eliminates tire slippage and improves gradeability and performance. A high-traction variant is available for demanding applications where additional torque is needed to tackle extreme slopes or thick lifts of loose material.

All three levels of Compact Assist software are available on the in-cab tablet (the Volvo Co-Pilot) allowing users to determine the visibility, mapping and reporting features that are most important to them.

Volvo CE

Sustainable Design

The SD125 features a powerful Tier 4F four-cylinder Volvo engine with 147.5 hp (110 kW). Active DPF regeneration eliminates material build-up, reducing emissions.

Additional features include:

• A hydraulically operated engine cooling fan that runs only when needed.
• Low noise levels.
• Optional fan reverse for cleaning out the coolers.
• Volvo long-life coolant to protect the machine for up to 6,000 hours.
• Remote hydraulic test ports that can be configured to enable hydraulic checkpoints without having to open the system.

An accessible emergency stop system shuts down the engine, applies the brakes and stops the machine’s movement if the operator rises from the seat for more than five seconds during operation.

The SD125 is designed and built at the Volvo CE North American headquarters in Shippensburg, Pennsylvania, along with all Volvo asphalt and soil compactors.
