HR120C-9 Vibratory Roller

HA control allows the traction drive to be automatically adjusted to different soil types

March 18, 2014

Hyundai Construction Equipment Americas Inc.

Hyundai Hr120c 9 11351504

Hd Full Color 1

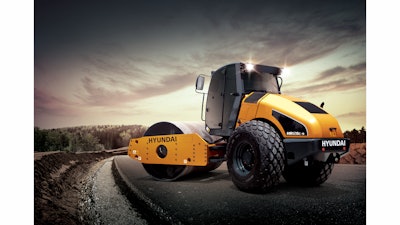

The 26,455-lb. HR120C-9 single-drum vibratory roller is suitable for soil and aggregate compaction in applications such as residential and commercial site prep and road construction.

Drum width of 6 ft. 10 in., drum diameter of 4 ft. 11 in. and a drum thickness of 1.18 in.
Two-stage vibration system with dual amplitude, a centrifugal force of 240/140 kN (high/low) and a high/low frequency of 30/40 Hz
Gradeability up to 48%
130-hp Deutz TCD 2012 L4 turbo, water-cooled diesel engine with optional ECO speed feature
HA control allows the traction drive to be automatically adjusted to different types of soil with no operator intervention
Features a maintenance-free articulation joint and low-maintenance vibration unit and articulated pendulum joints
Standard permanent differential lock and front and rear scrapers
Spacious operator cabin with fully adjustable and single joystick for maneuvering
Optional padfoot segment kit
